Ball valves and hydraulic valves

Hydraulic Ball Valves

Precision hydraulic quick couplings from Gemels — engineered for easy connection and disconnection across agriculture, earth-moving, heavy industry and high-pressure hydraulic applications.

Our Gemels Hydraulic Ball Valves are the perfect solution to easily connect and disconnect hydraulic system components and equipment, without disconnecting pipes or fittings, and without oil leaks. Available across pressures from 200 to 1000 bar and sizes from ¼" to 2", every unit supplied by Jasmine Engineers is tested to the applicable safety regulations for a leak-proof, drop-in match in OEM and aftermarket circuits.

Ball valve for hydrogen
Gemels GH2 hydrogen ball valve
GH2
Type
2-WAY HIGH CYCLE BALL VALVE
Dimensionsfrom DN6 to DN25
Technical details BSP-NPT-SAE
Pressureup to PN1000
Ball valves for automotive

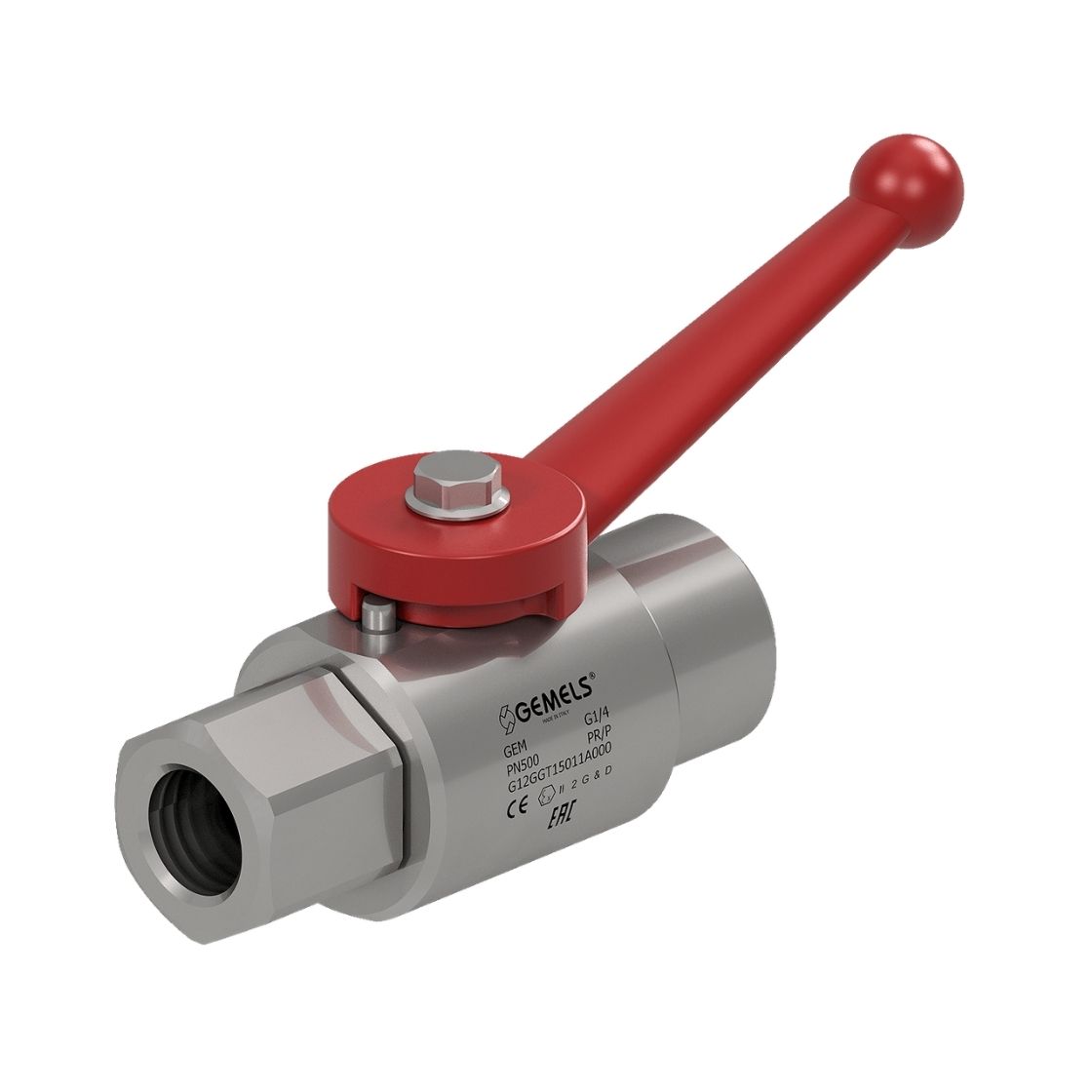

Gemels GEM automotive ball valve
GEM
TypeBALL VALVE 2 WAY
DimensionsDN6
Technical detailsBSP-NPT-SAE
Pressureup to PN500
Temperature rangefrom -20°C up to +100°C
Ball valves for agriculture

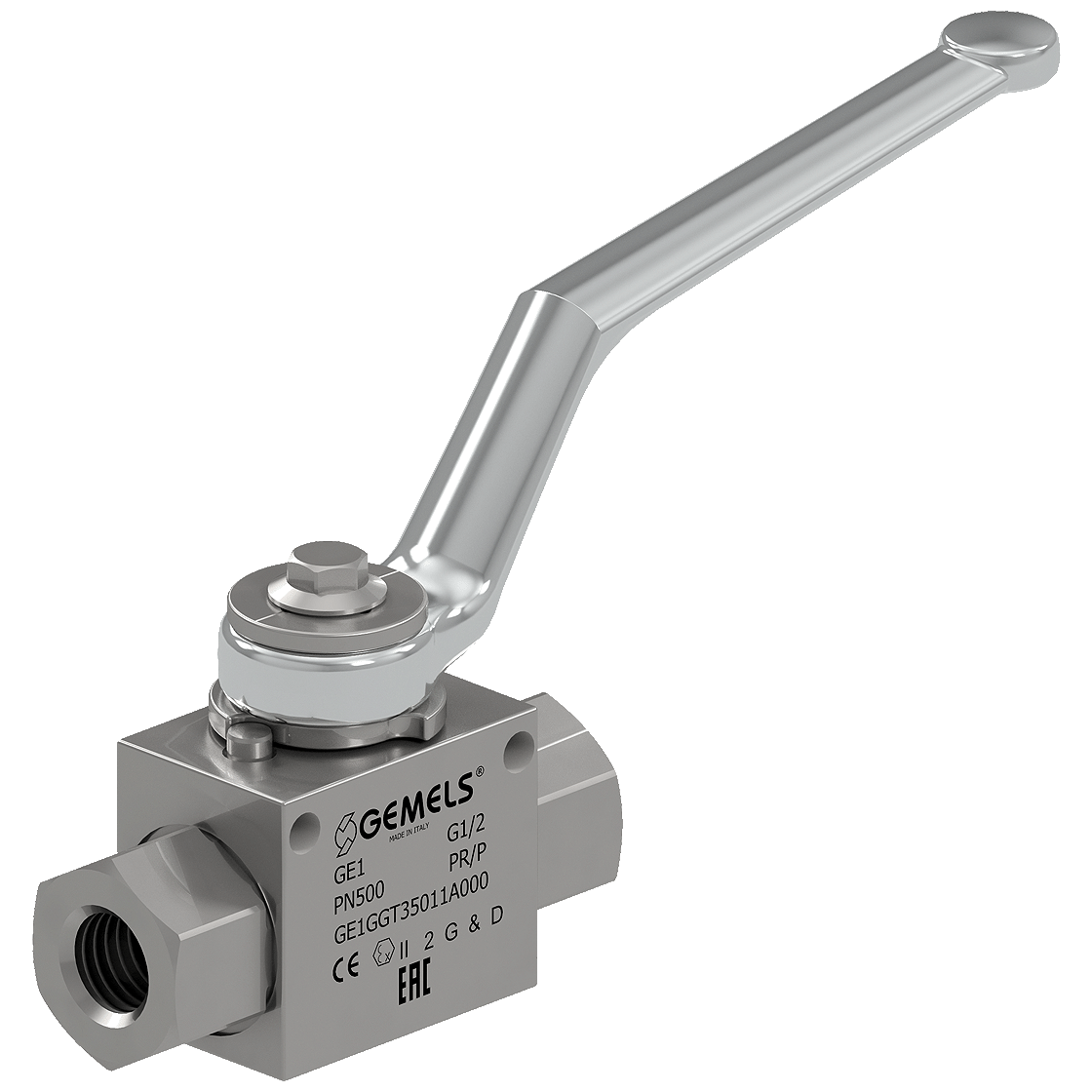

Gemels GE1 agriculture ball valve
GE1
TypeBALL VALVE 2 WAY
Dimensionsfrom DN6 to DN13
Technical detailsBSP-NPT-SAE
Pressure up to PN500
Temperature rangefrom -20°C up to +100°C
Ball valves for agriculture

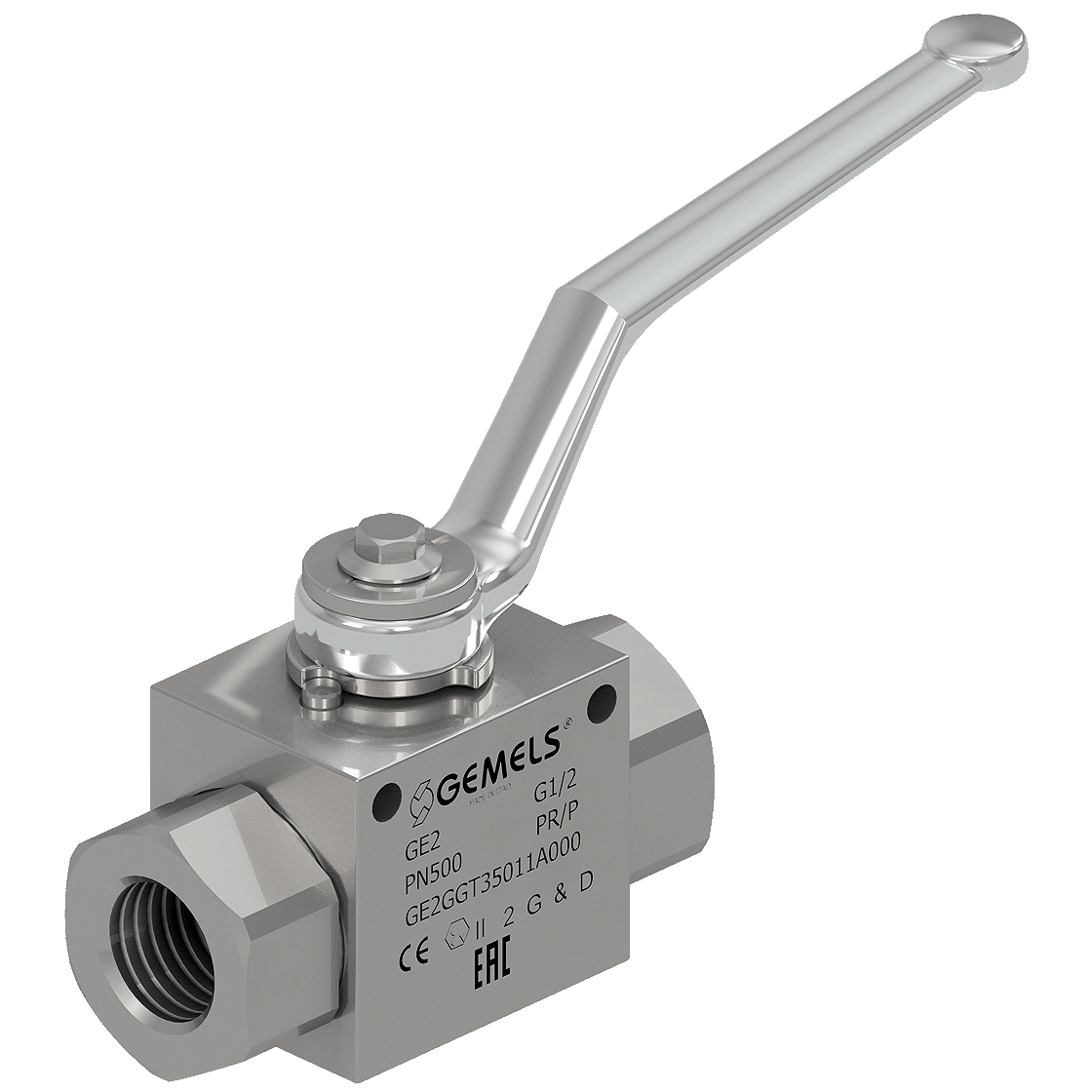

Gemels GE2 agriculture ball valve
GE2
TypeBALL VALVE 2 WAY
Dimensionsfrom DN6 to DN25
Technical detailsBSP-NPT-SAE-DIN
Pressureup to PN500
Temperature range from -20°C up to +100°C

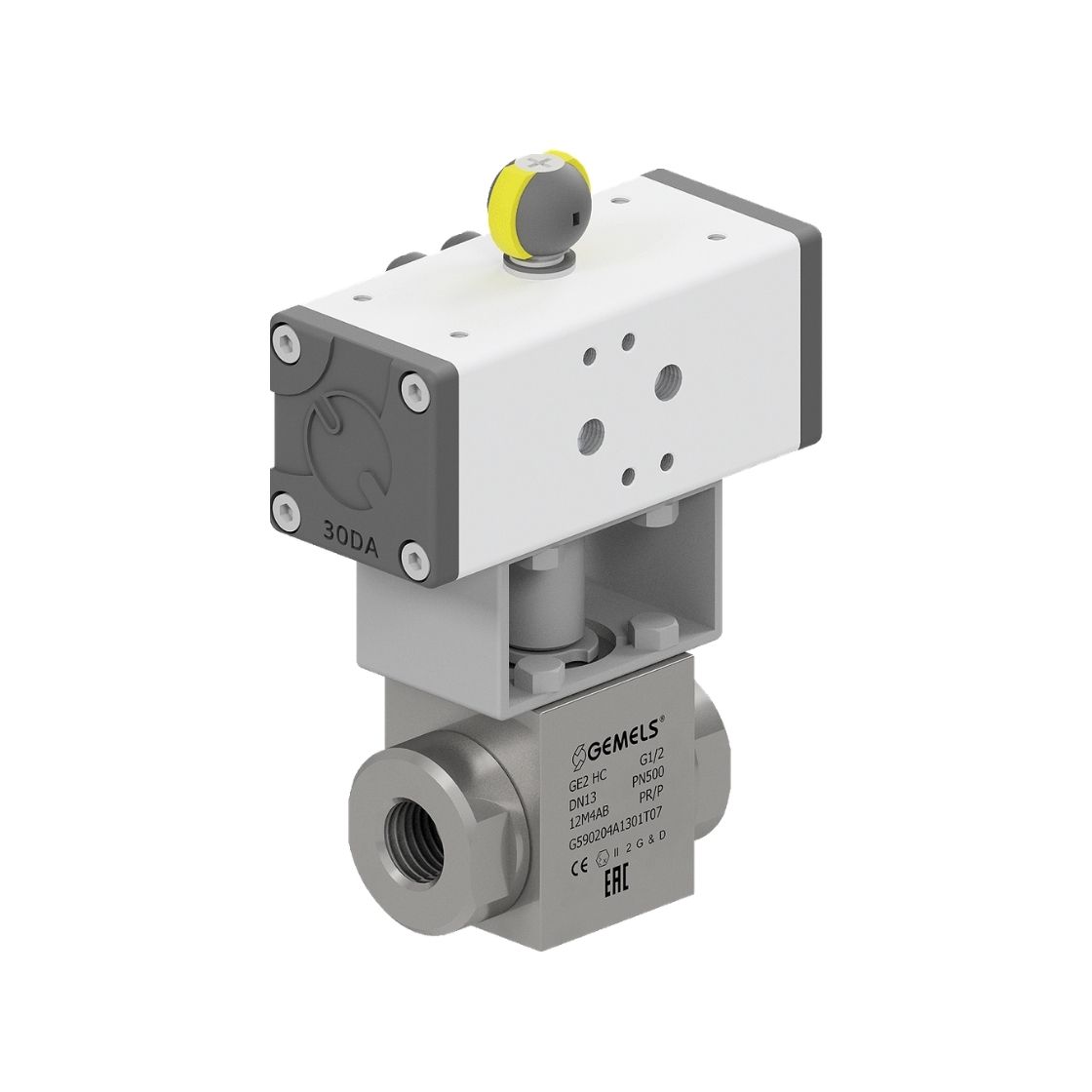

Ball valves for CNG
Gemels GE2HC CNG ball valve
GE2HC
TypeBALL VALVE 2 WAY
Dimensionsfrom DN6 to DN25
Technical detailsBSP-NPT-SAE-DIN
Pressureup to PN500
Temperature range from -20°C up to +100°C
Ball valves for CNG

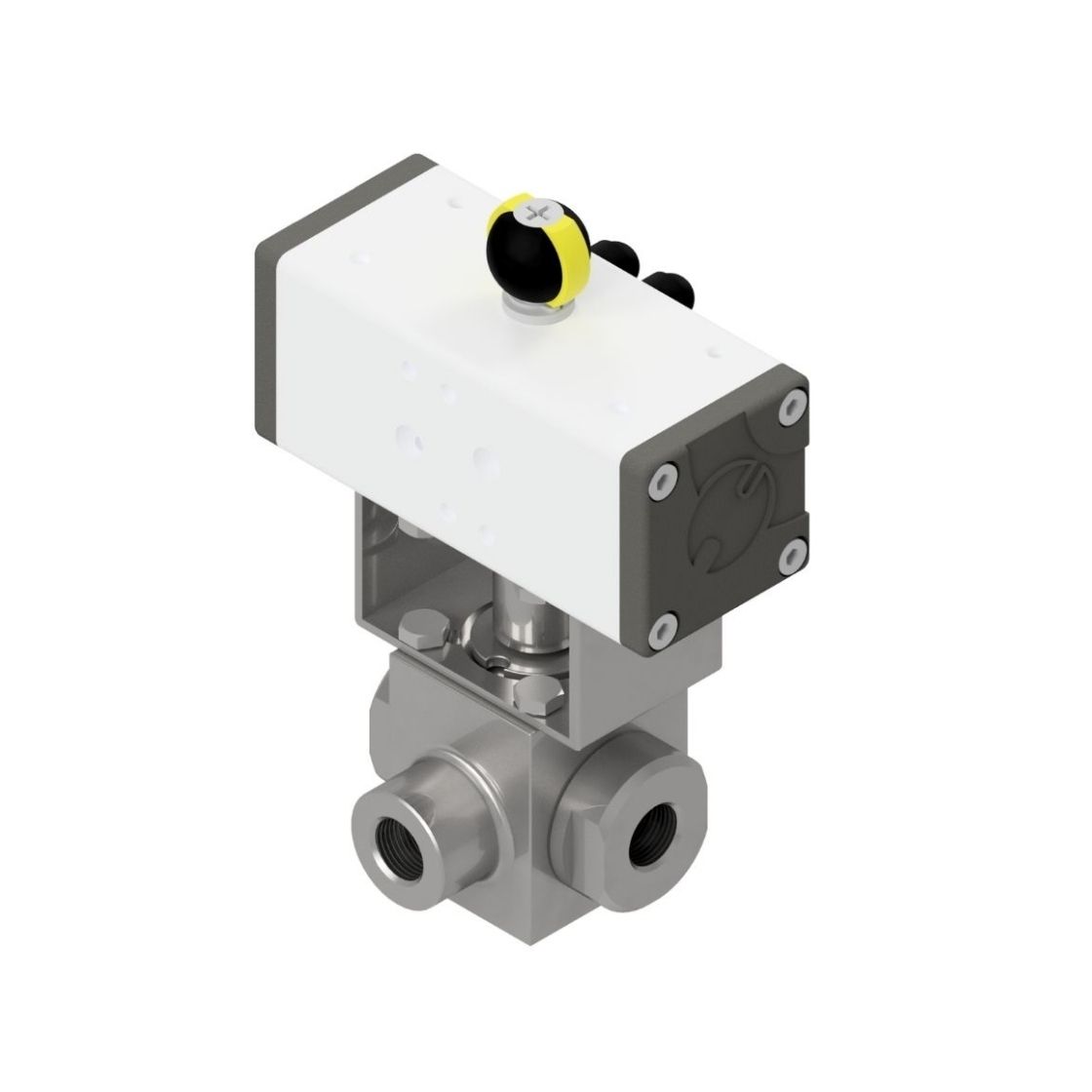

Gemels GE3L 3-way CNG ball valve
GE3L
Type3-way ball valve, high cycle life
Dimensionsfrom DN10 to DN25
Technical details BSP-NPT-SAE
Pressureup to PN500
Temperature rangefrom -20°C to +100°C
Ball valves for heavy equipment

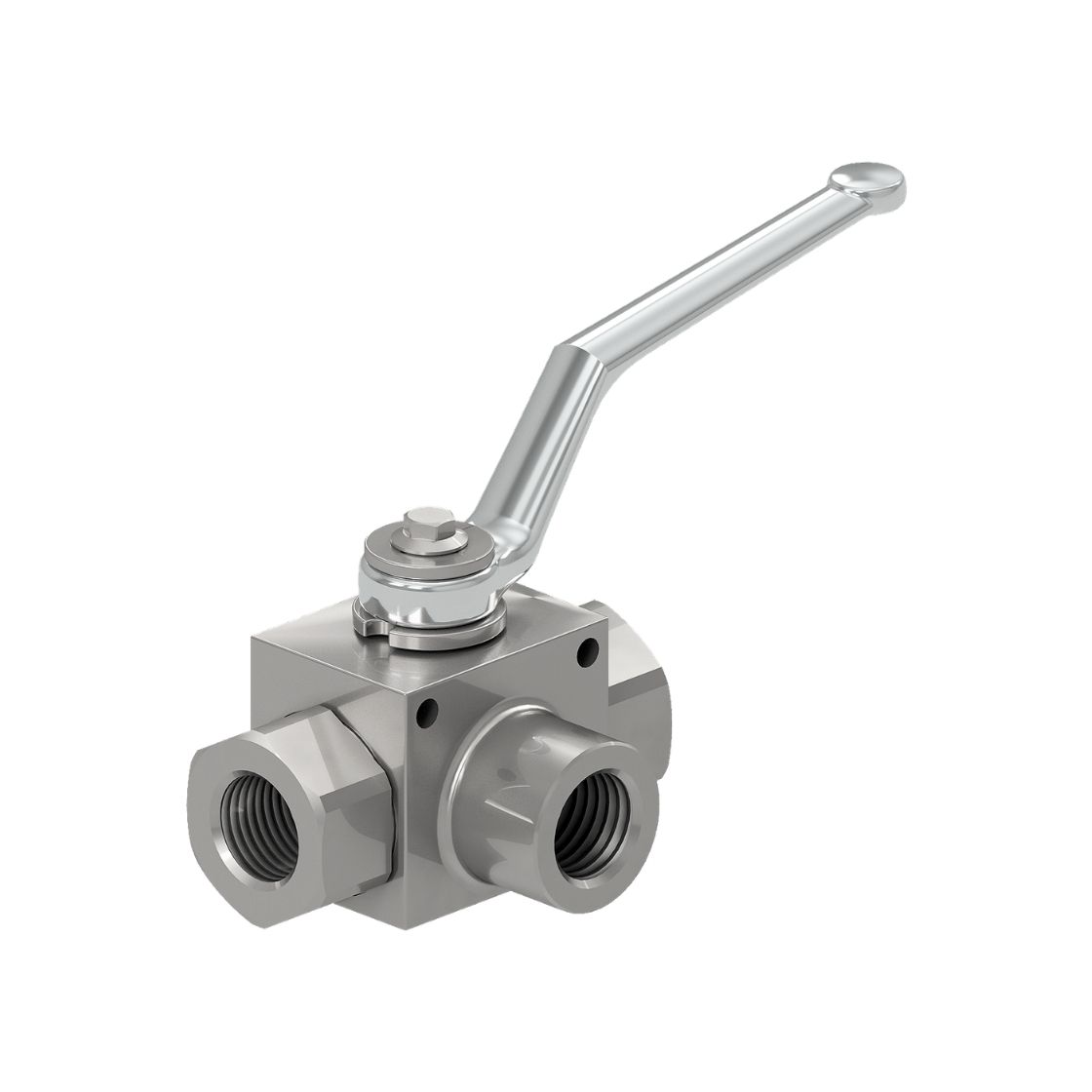

Gemels GE3T 3-way ball valve
GE3T
Type3-WAY BALL VALVE
Dimensionsfrom DN6 to DN13
Technical detailsBSP-NPT-SA
Pressureup to PN500
Temperature range from -20°C up to +100°C
Ball valves for agriculture
Gemels GE3K 3-way ball valve for agriculture
GE3K
TypeBALL VALVE 3 WAY
Dimensions from DN6 to DN25
Technical detailsBSP-NPT-SAE-DIN
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valves for heavy equipment

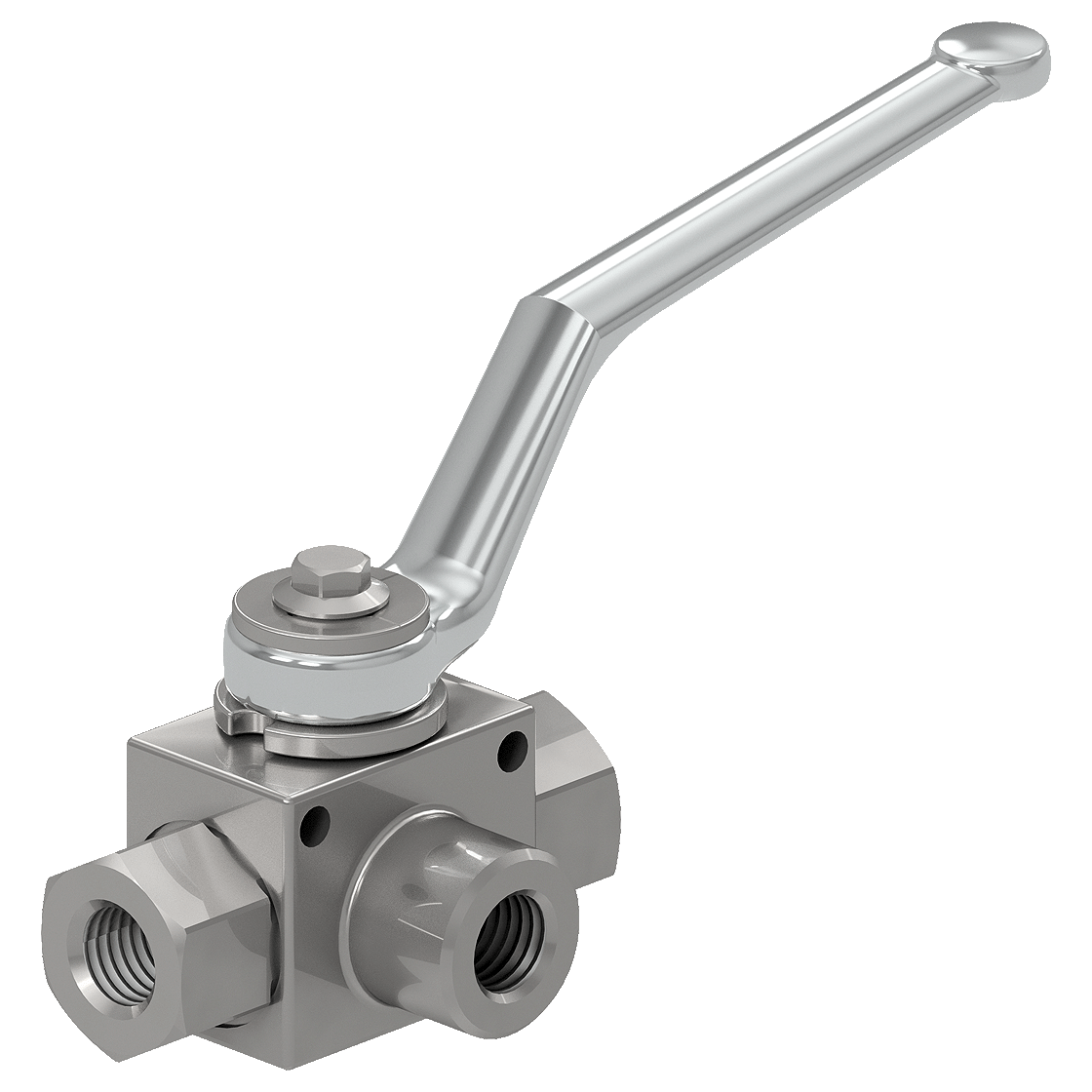

Gemels GE5 heavy equipment ball valve
GE5
Type3-WAY BALL VALVE
Dimensions from DN6 to DN13
Technical detailsBSP-NPT-SA
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valves for heavy equipment
Gemels GE3KL 3-way ball valve
GE3KL
Type3-WAY BALL VALVE
Dimensions from DN6 to DN13
Technical detailsBSP-NPT-SA
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valves for heavy equipment
Gemels GE3KT 3-way ball valve
GE3KT
Type3-WAY BALL VALVE
Dimensions from DN6 to DN13
Technical detailsBSP-NPT-SA
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valves for heavy industry and forestry

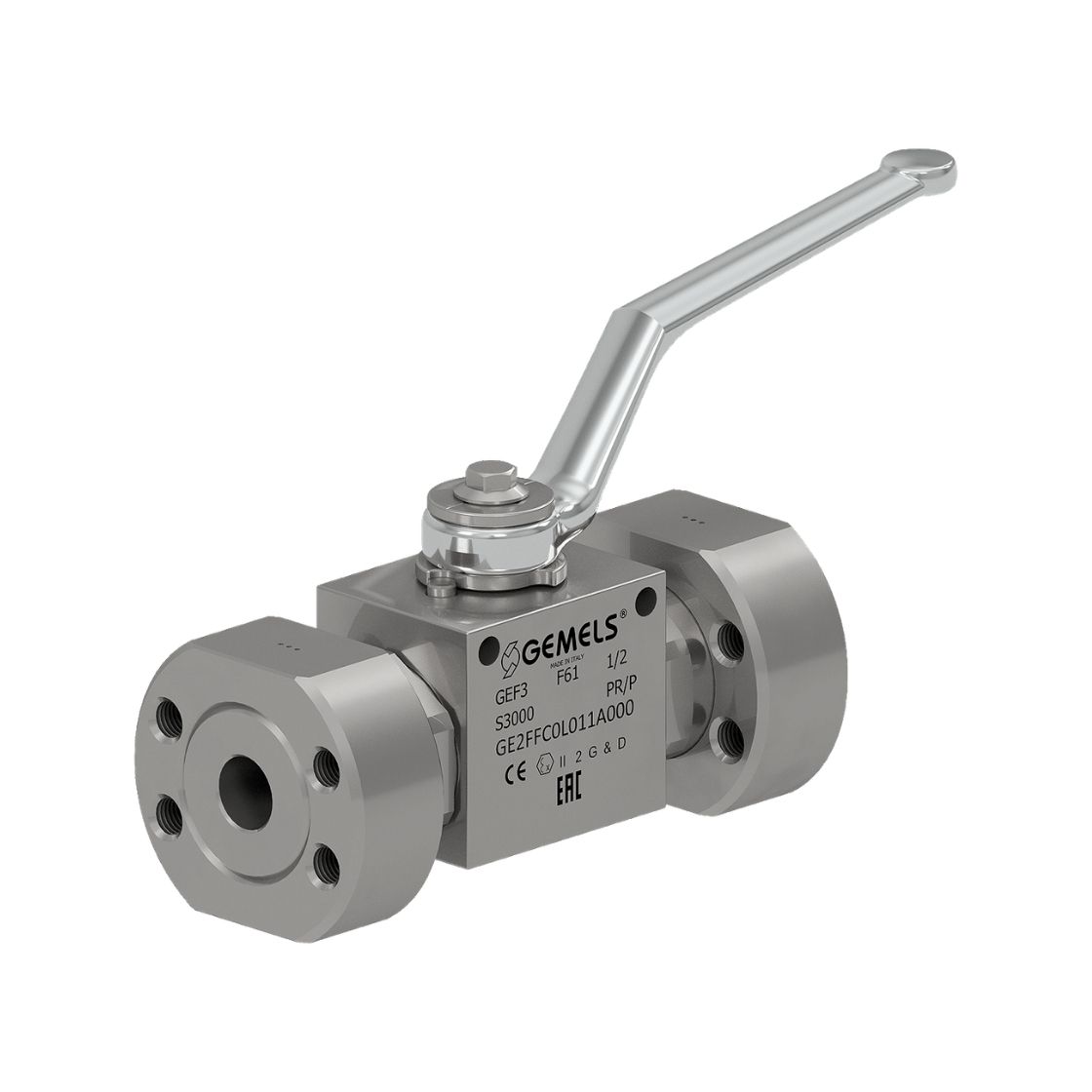

Gemels GEF ball valve for heavy industry and forestry
GEF
TypeBALL VALVE 2 WAY
Dimensions from DN13 to DN25
Technical detailsISO6162-1/-2 , SAEJ518-1/-2
Pressure up to PN420/S6000
Temperature range from -20°C up to +100°C
Ball valves for mining and drilling

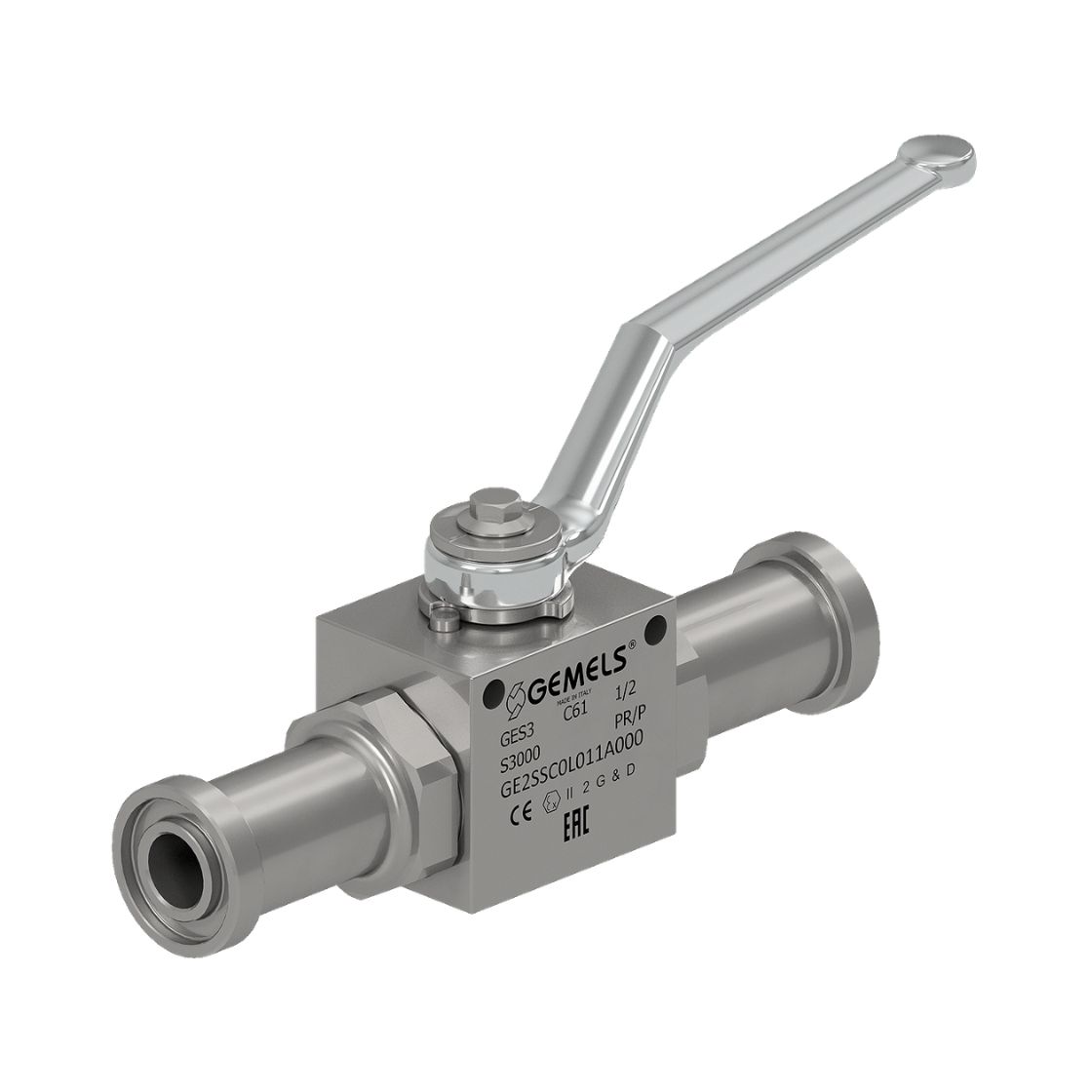

Gemels GES ball valve for mining and drilling
GES
Type BALL VALVE 2 WAY
Dimensions from DN13 to DN25
Technical detailsSAE J518
Pressureup to PN420/S6000
Temperature range from -20° up to +100°
Ball valve for mining and drilling

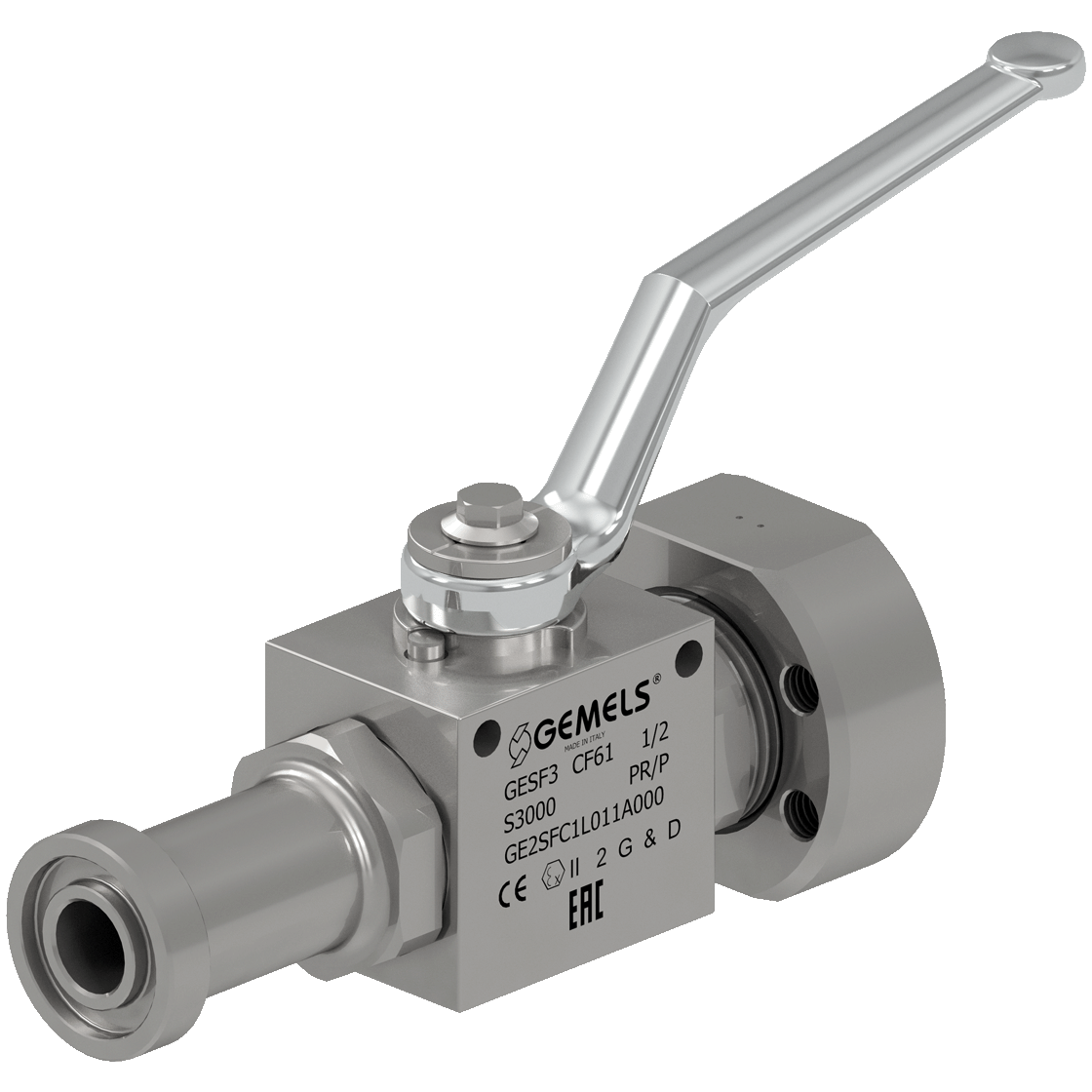

Gemels GEF-S ball valve for mining and drilling
GEF-S
Type BALL VALVE 2 WAY
Dimensions from DN13 to DN25
Technical detailsISO6162-1/-2 , SAEJ518-1/-2
Pressureup to PN420/S6000
Temperature range from -20° up to +100°
Agriculture sector

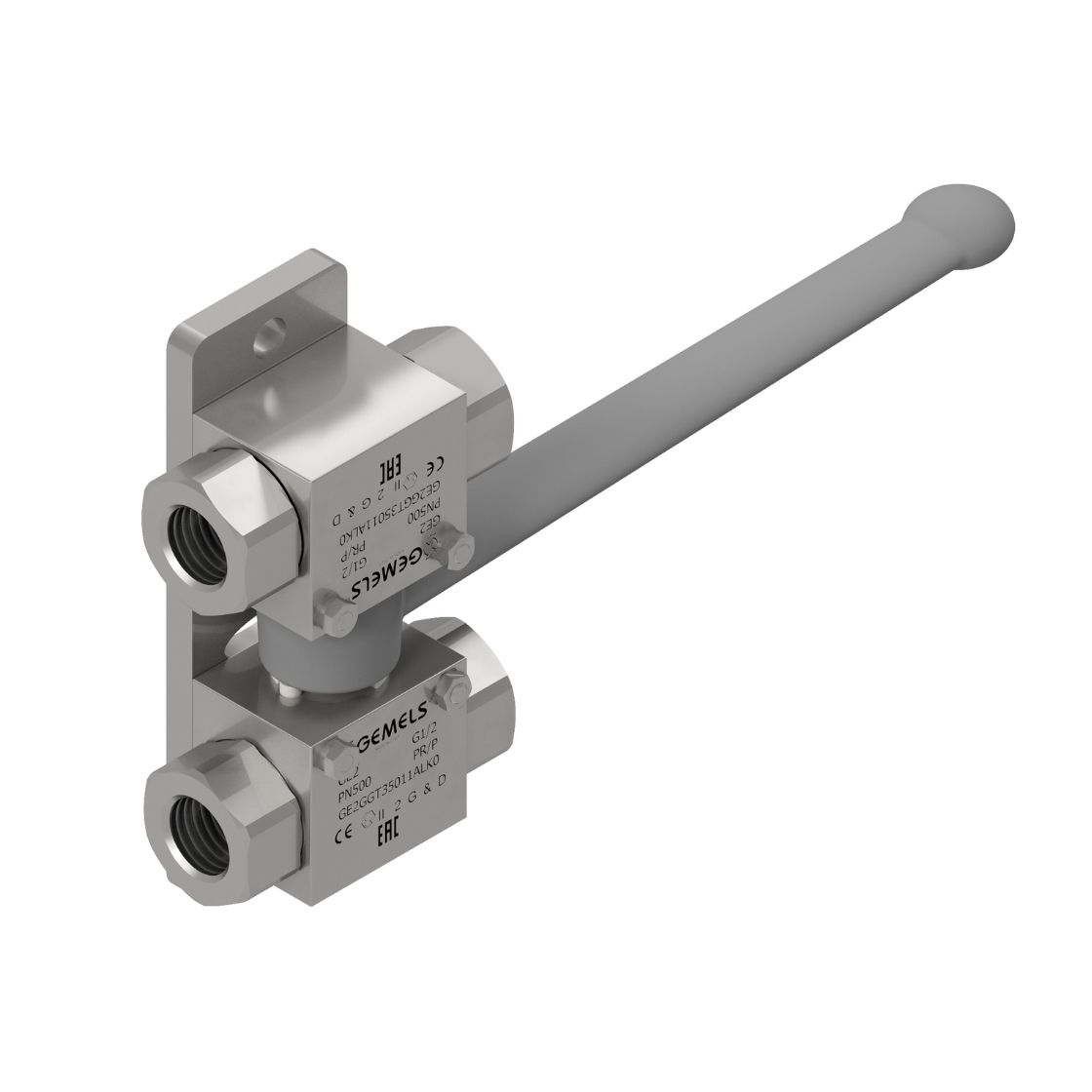

Gemels GE2 lever tandem combination valve
GE2 LEVER TANDEM
Type Tandem Combination Valves
Dimensions from DN6 to DN25
Pressureup to PN500
Agriculture sector

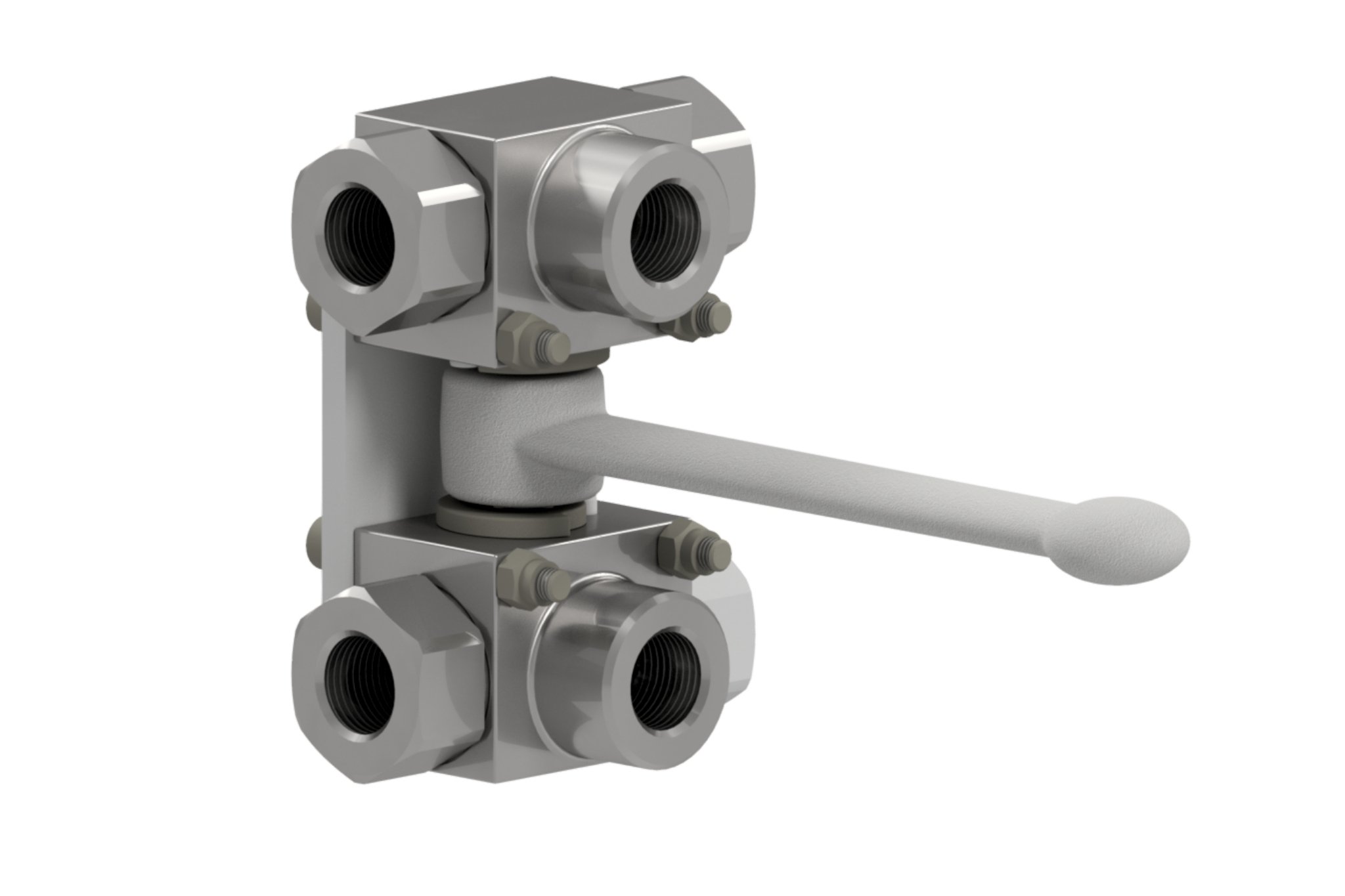

Gemels GE3 lever tandem combination valve
GE3 LEVER TANDEM
Type Tandem combination valves
Dimensions from DN6 to DN25
Pressureup to PN500
Ball valves for heavy equipment and firefighting

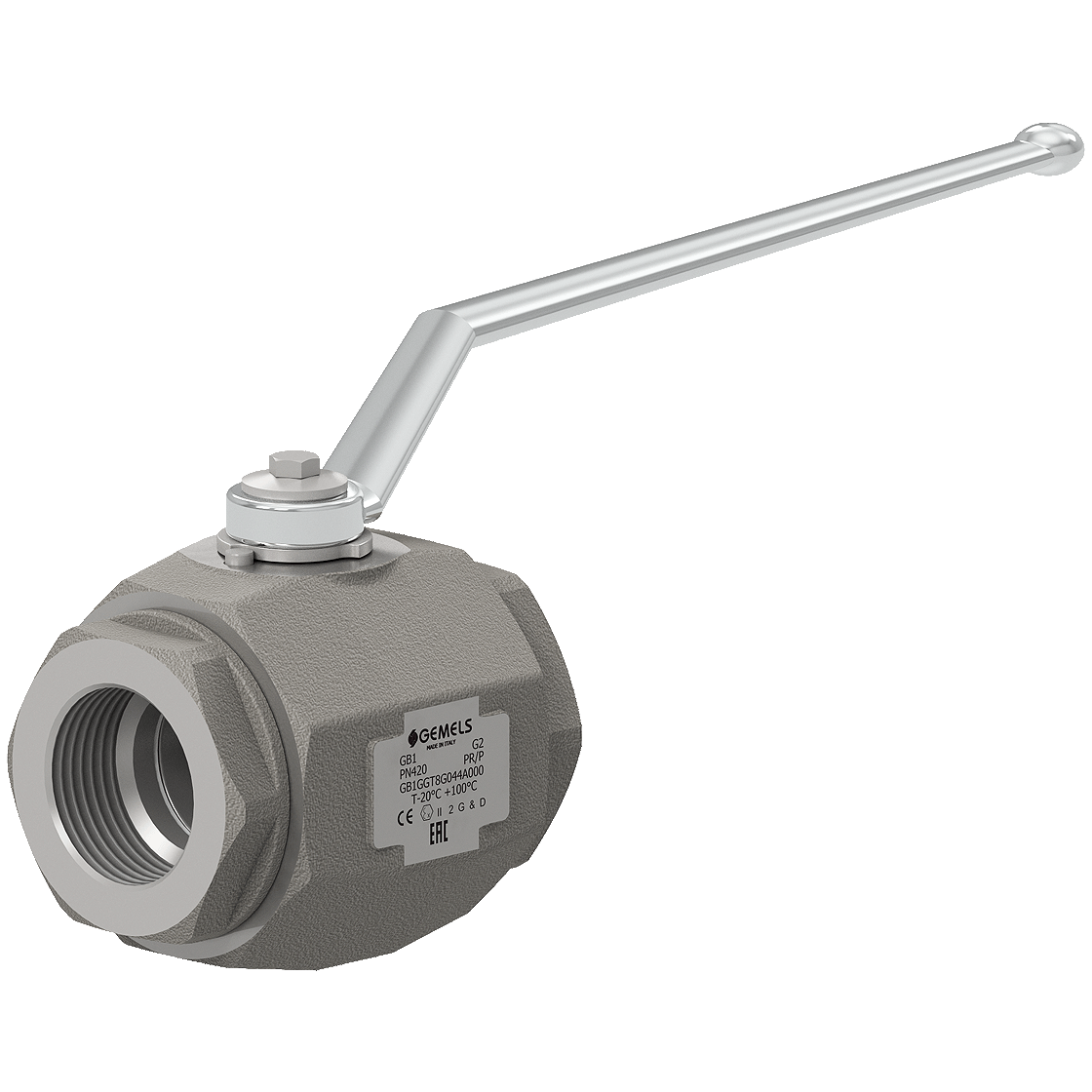

Gemels GB1 ball valve for heavy equipment and firefighting
GB1
Type BALL VALVE 2 WAY
Dimensions from DN32 to DN50
Pressureup to PN420
Temperature range from -30°C to +100°C (body -46°C)
Ball valve for heavy equipment

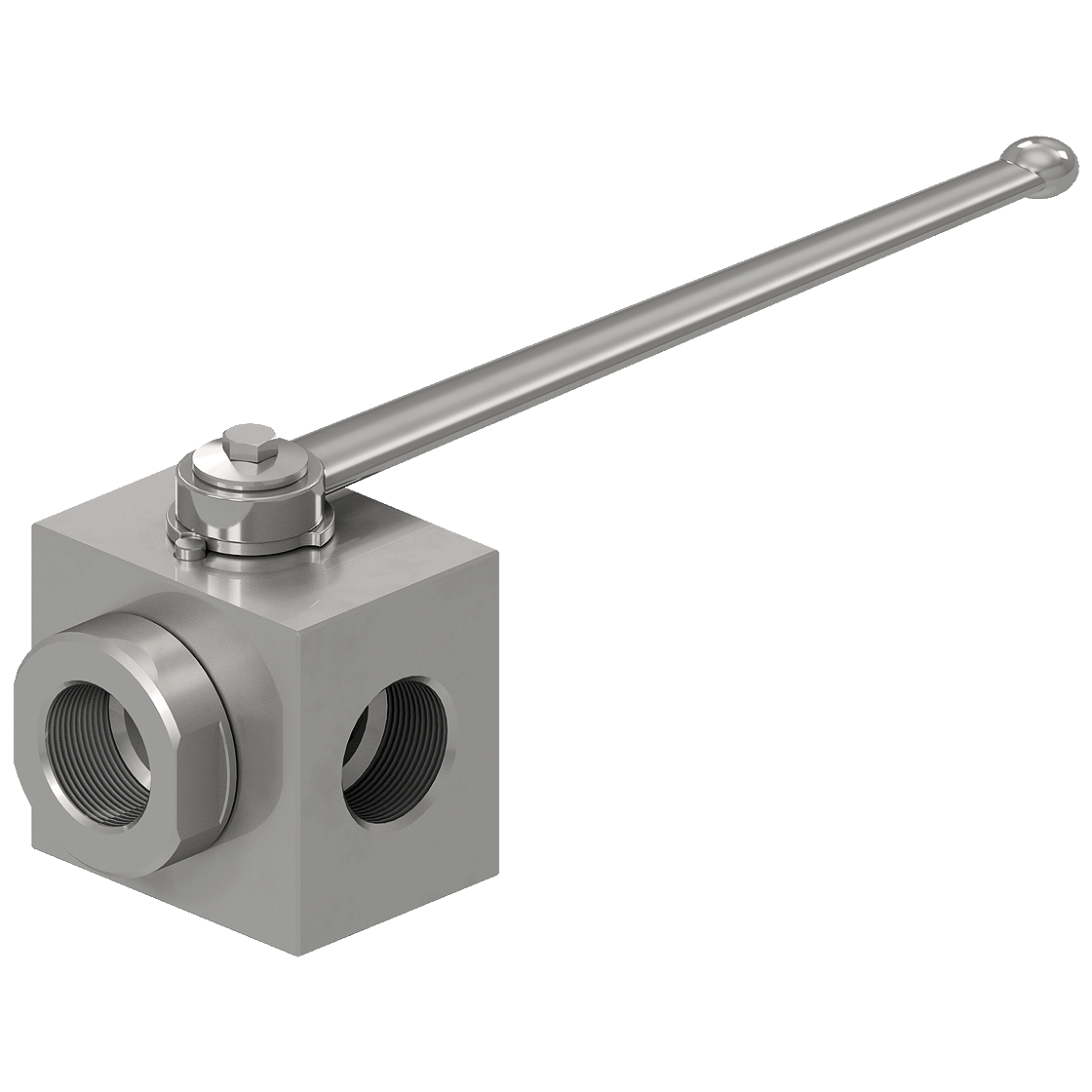

Gemels GB3 ball valve for heavy equipment
GB3
Type 3-WAY BALL VALVE
Technical details BSP-NPT
Pressureup to PN350
Temperature range from -20°C up to +100°C
Ball valve for renewable energies

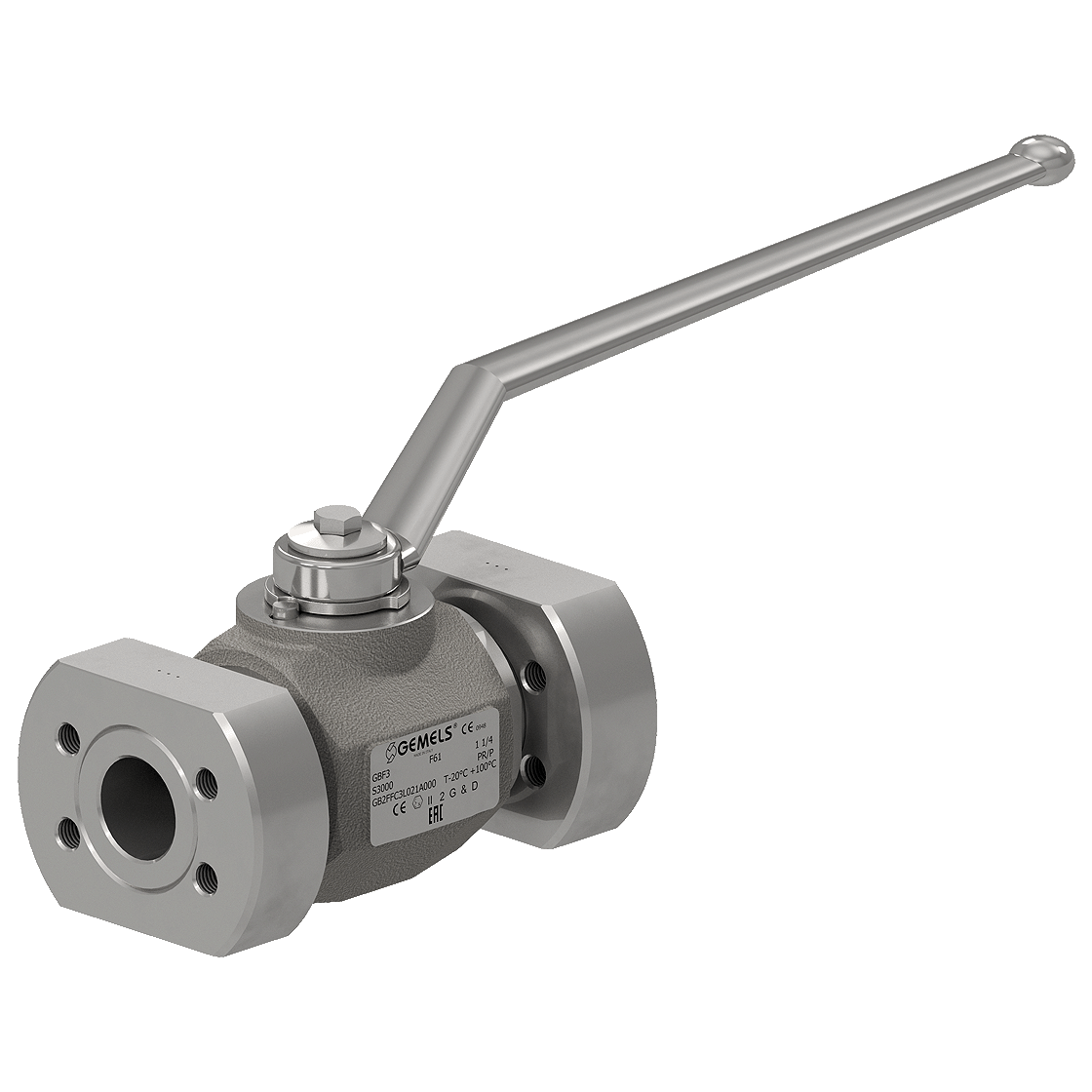

Gemels GBF ball valve for renewable energies
GBF
Type BALL VALVE 2 WAY
Dimensionsfrom DN32 to DN50
Technical details ISO6162-1/-2 , SAEJ518-1/-2
Temperature range from - 30°C up to +100°C (body -46°C)
Ball valve for steel plant
Gemels GBS ball valve for steel plant
GBS
Type BALL VALVE 2 WAY
Technical detailsSAE J518
Pressureup to PN420/S6000
Temperature rangefrom -20°C to +100°C (body -46°C)
Ball valve for renewable energies

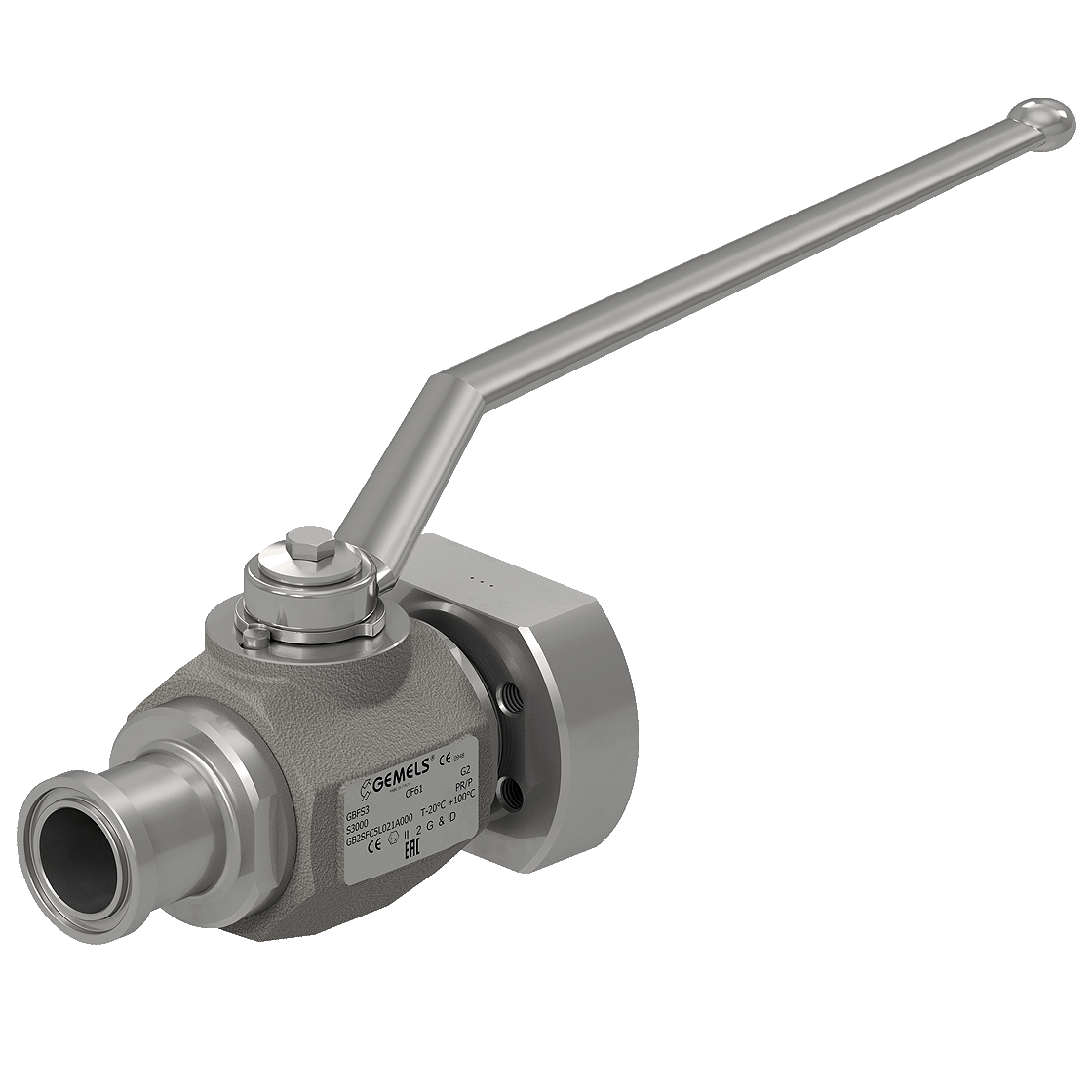

Gemels GBF-S ball valve for renewable energies
GBF-S
Type BALL VALVE 2 WAY
Dimensionsfrom DN32 to DN50
Technical detailsISO6162-1/-2 , SAEJ518-1/-2
Pressureup to PN420/S6000
Ball valve for heavy equipment

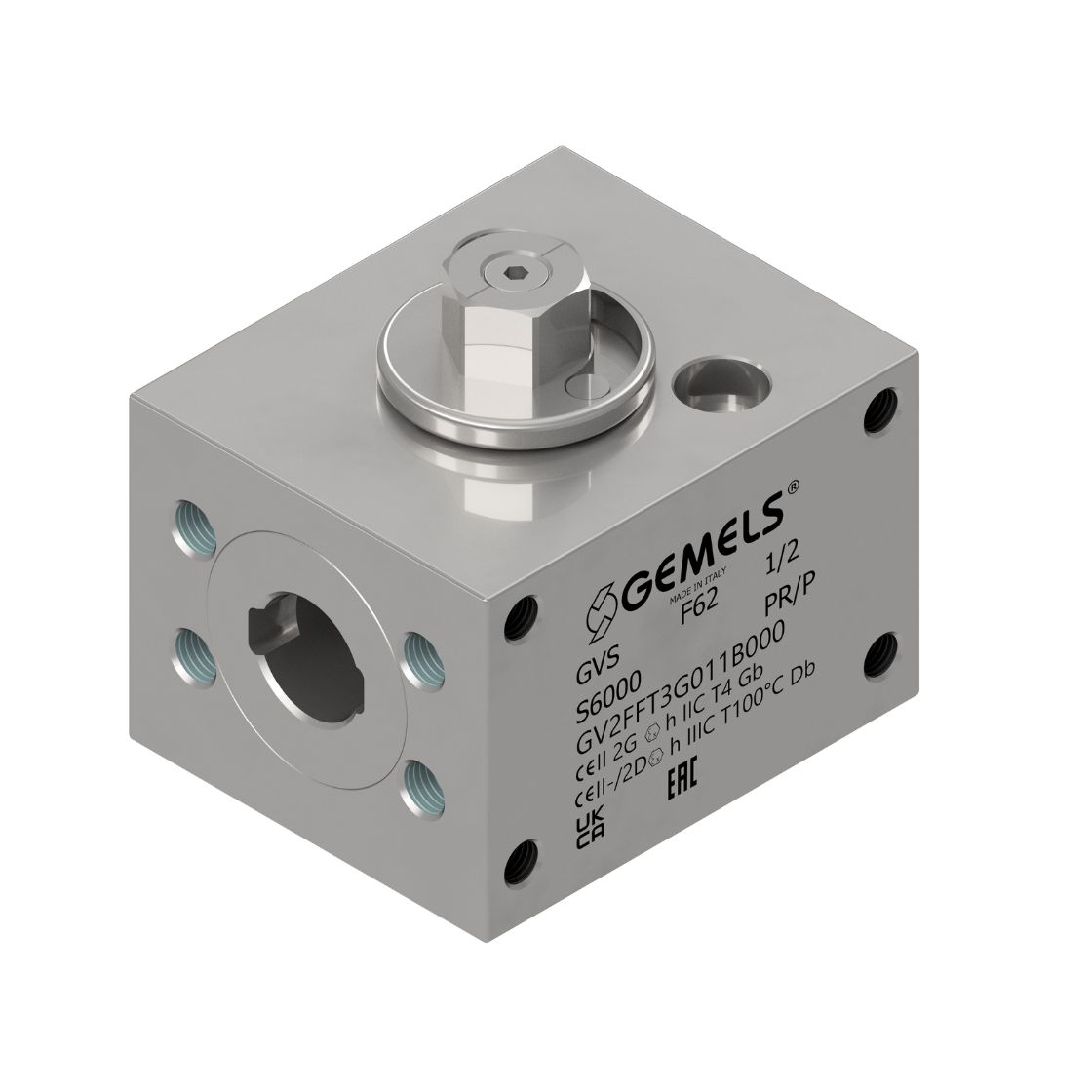

Gemels GVS ball valve for heavy equipment
GVS
Type BALL VALVE 2 WAY
Dimensions from DN13 to DN40
Technical detailsISO6162-1/-2 (SAE J518)
PressureUp to PN420 / S3000-S6000
Temperature rangeFrom -20°C to +100°C
Ball valve for heavy equipment

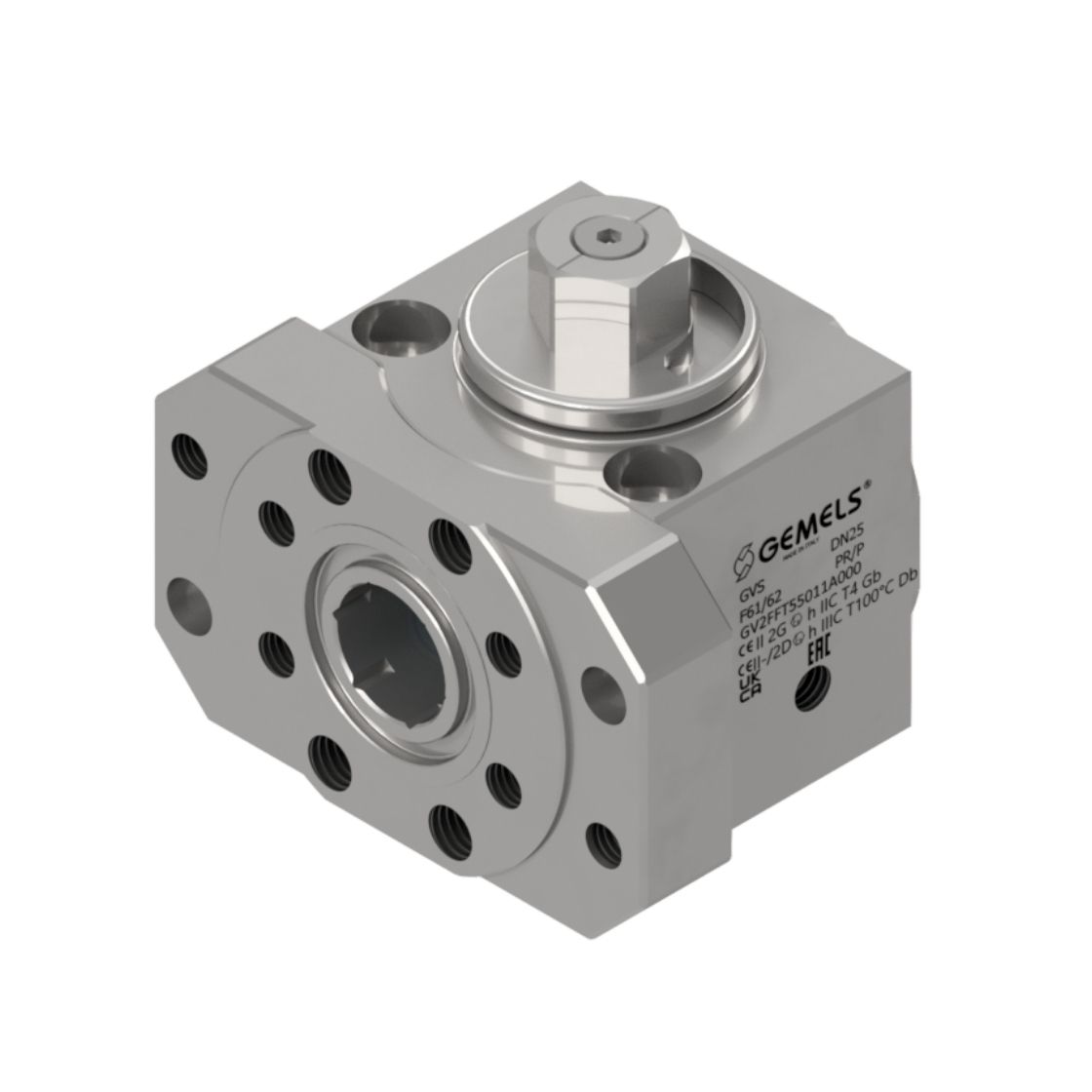

Gemels GVS flanged ball valve
GVS FLANGED
Type BALL VALVES 2 WAYS
Dimensions from DN13 to DN32
Technical detailsISO6162-1/-2 (SAE J518)
Pressureup to PN420 / S3000-S6000
Temperature rangefrom -20°C to +100°C
Ball valve for excavators

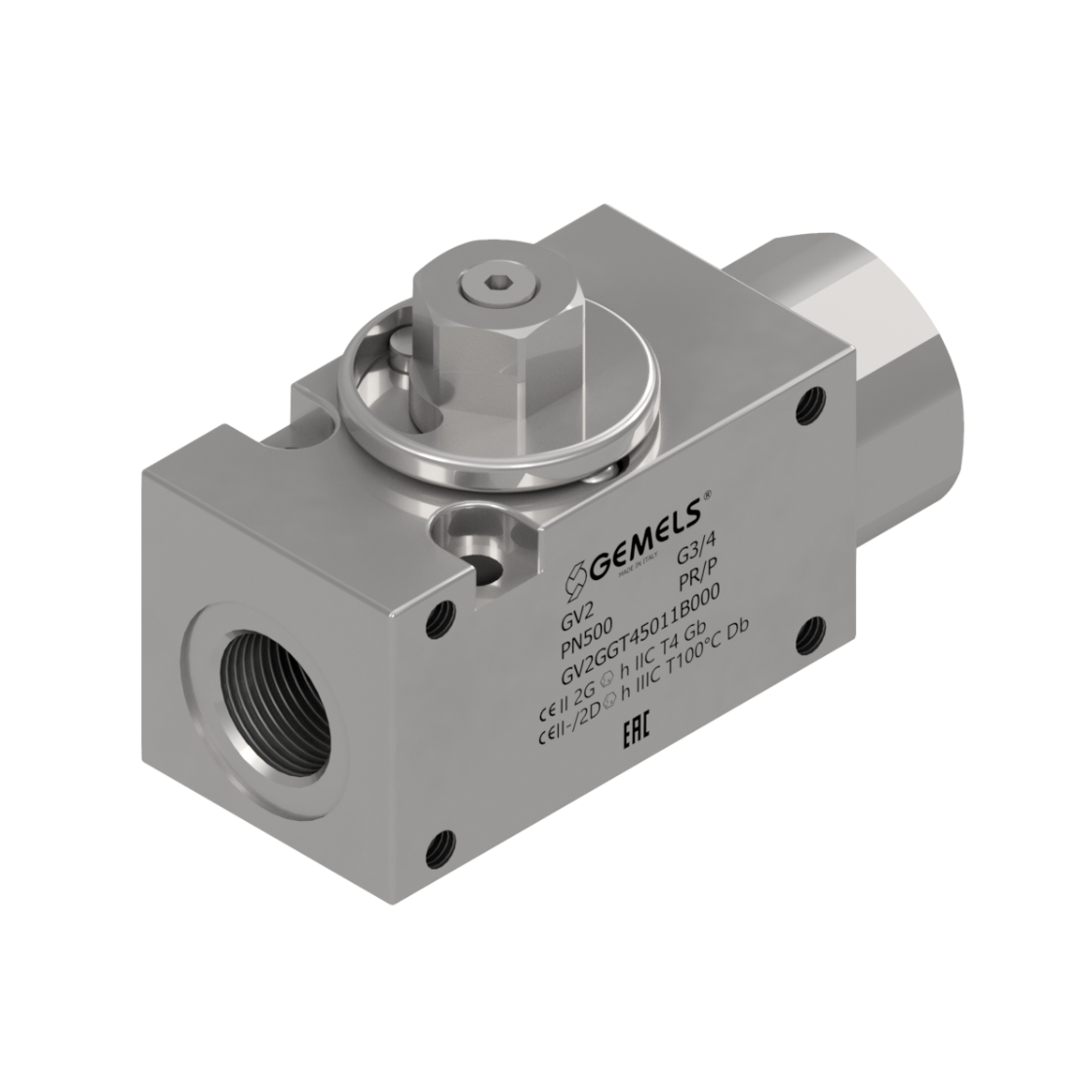

Gemels GV2 ball valve for excavators
GV2
Type BALL VALVE 2 WAY
Dimensions from DN10 to DN32
Technical detailsBSP-NPT-SAE / ISO6162-1
Pressureup to PN500/S6000
Temperature rangefrom -20°C up to +100°C

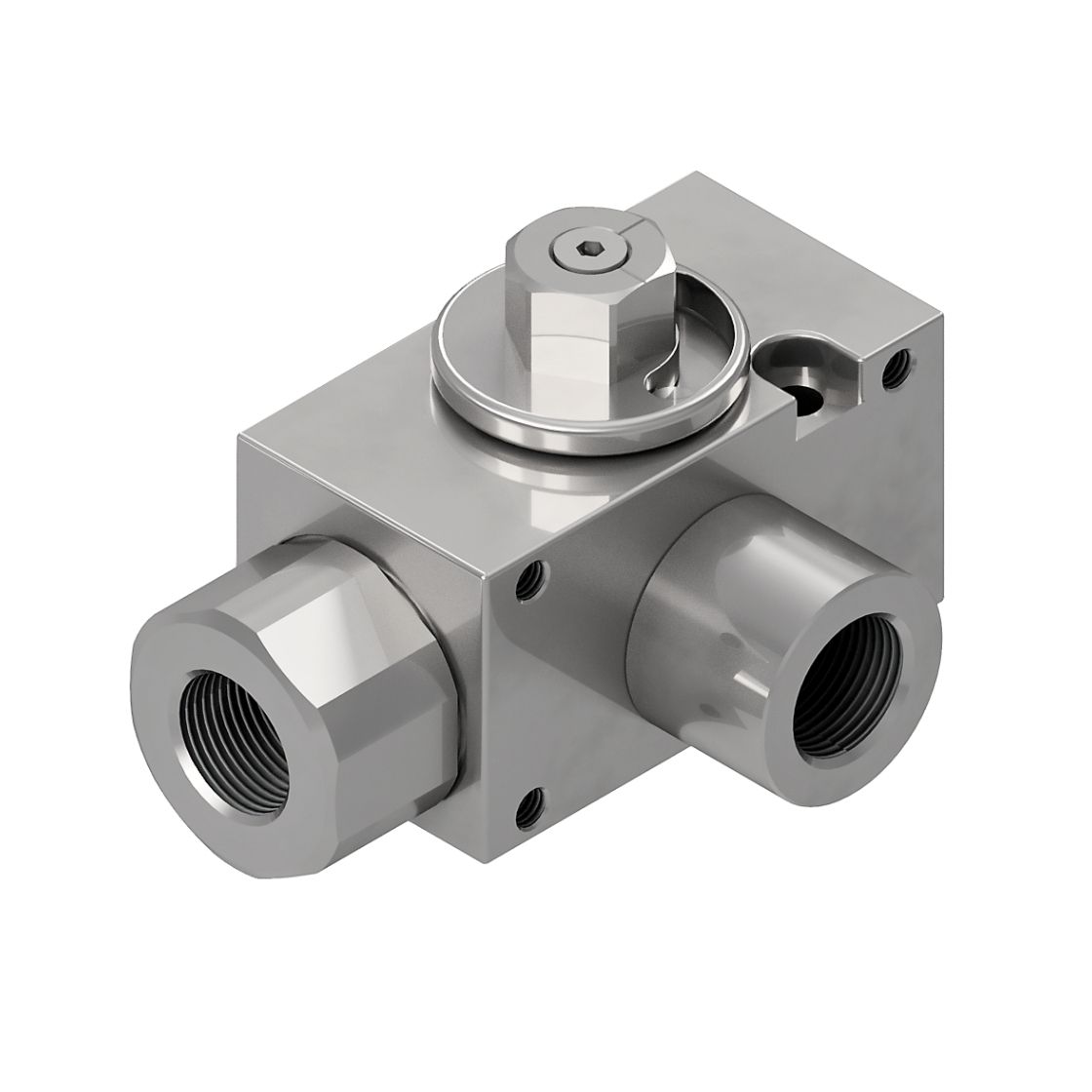

Ball valve for heavy equipment
Gemels GV2 ball valve for excavators
GV3
Type 3-WAY BALL VALVE
Dimensions from DN10 to DN32
Technical detailsBSP-NPT-SAE / ISO6162-1
Pressure up to PN500/S6000
Temperature rangefrom -20°C up to +100°C
Ball valve for heavy equipment
Gemels GV2 ball valve for excavators
GV3
Type 3-WAY BALL VALVE
Dimensions from DN10 to DN32
Technical detailsBSP-NPT-SAE / ISO6162-1
Pressure up to PN500/S6000
Temperature rangefrom -20°C up to +100°C
Ball valve for mining and drilling
Gemels GV2 ball valve for excavators
GV3K
Type 3-WAY BALL VALVE
Dimensions from DN10 to DN32
Technical detailsBSP-NPT-SAE / ISO6162-1
Pressure up to PN500/S6000
Temperature range from -20°C up to +100°C
Ball valve for hydraulic
Gemels GV2 ball valve for excavators

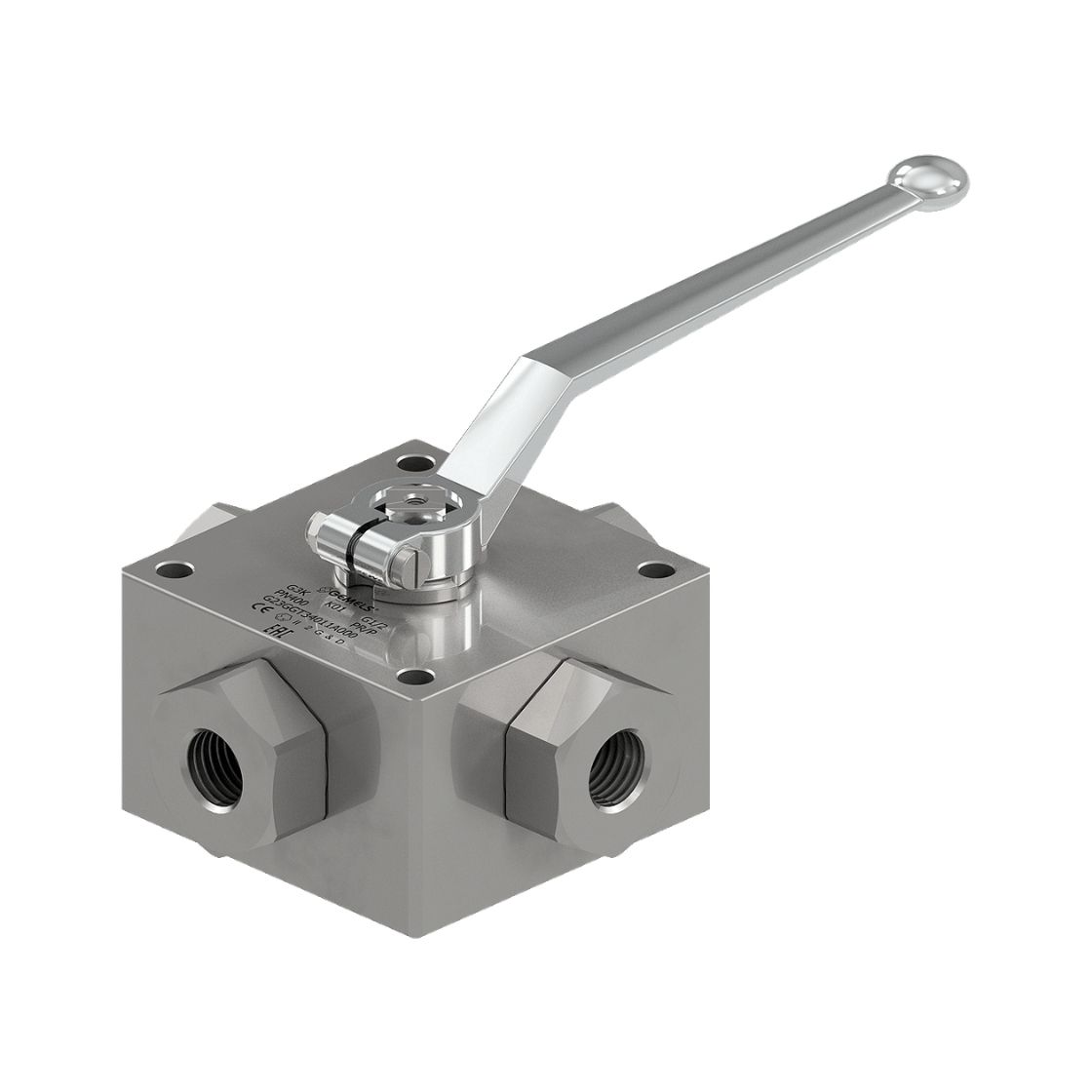

G3K
Type 3-WAY BALL VALVE
Dimensions from DN6 to DN25
Technical detailsBSP-NPT
Pressure up to PN500
Temperature range from -20°C up to +100°C

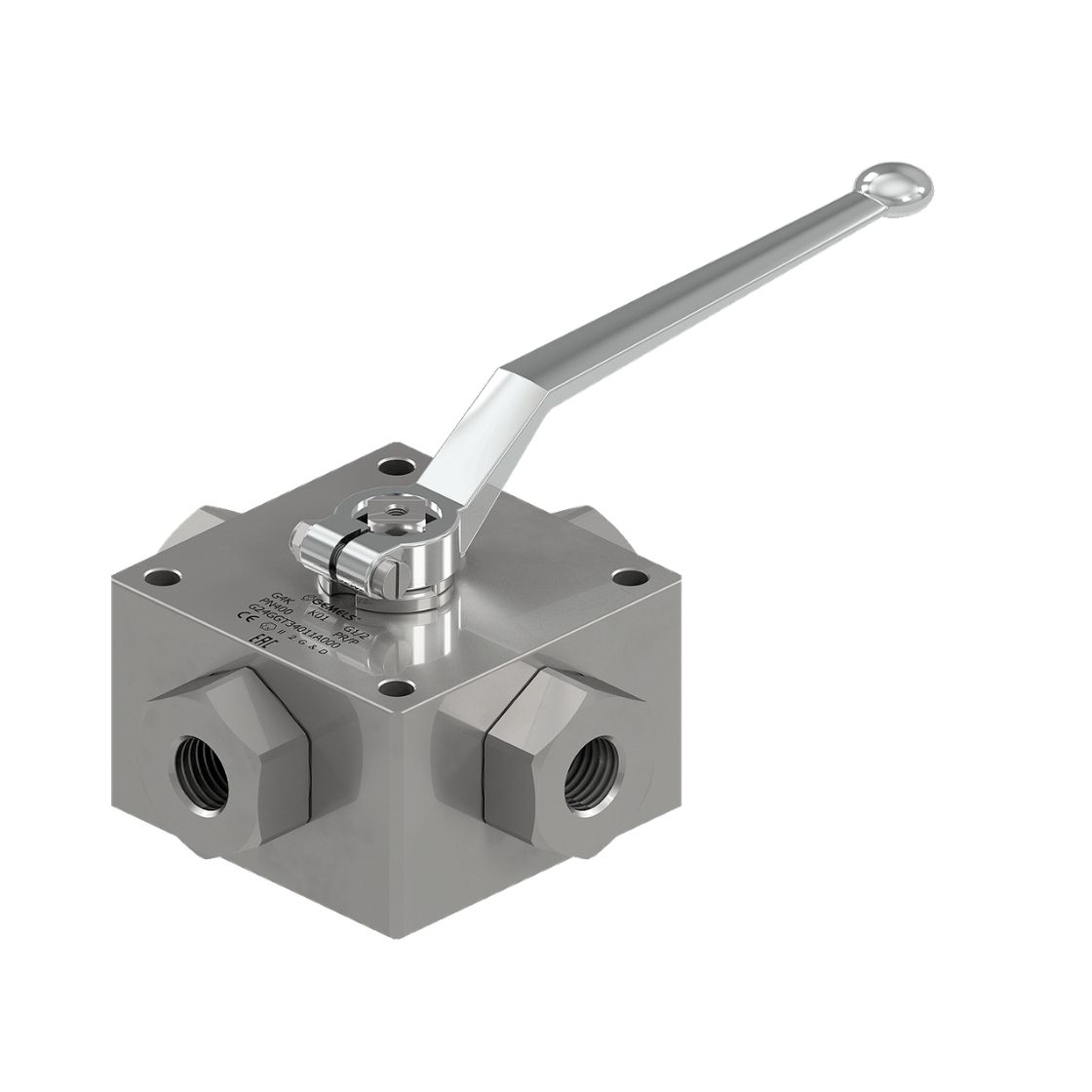

Ball valve for marine field
Gemels GV2 ball valve for excavators
G4K
Type 4-WAY BALL VALVES
Dimensionsfrom DN6 to DN25
Technical detailsBSP-NPT
Pressure up to PN500
Temperature range from -20°C up to +100°C

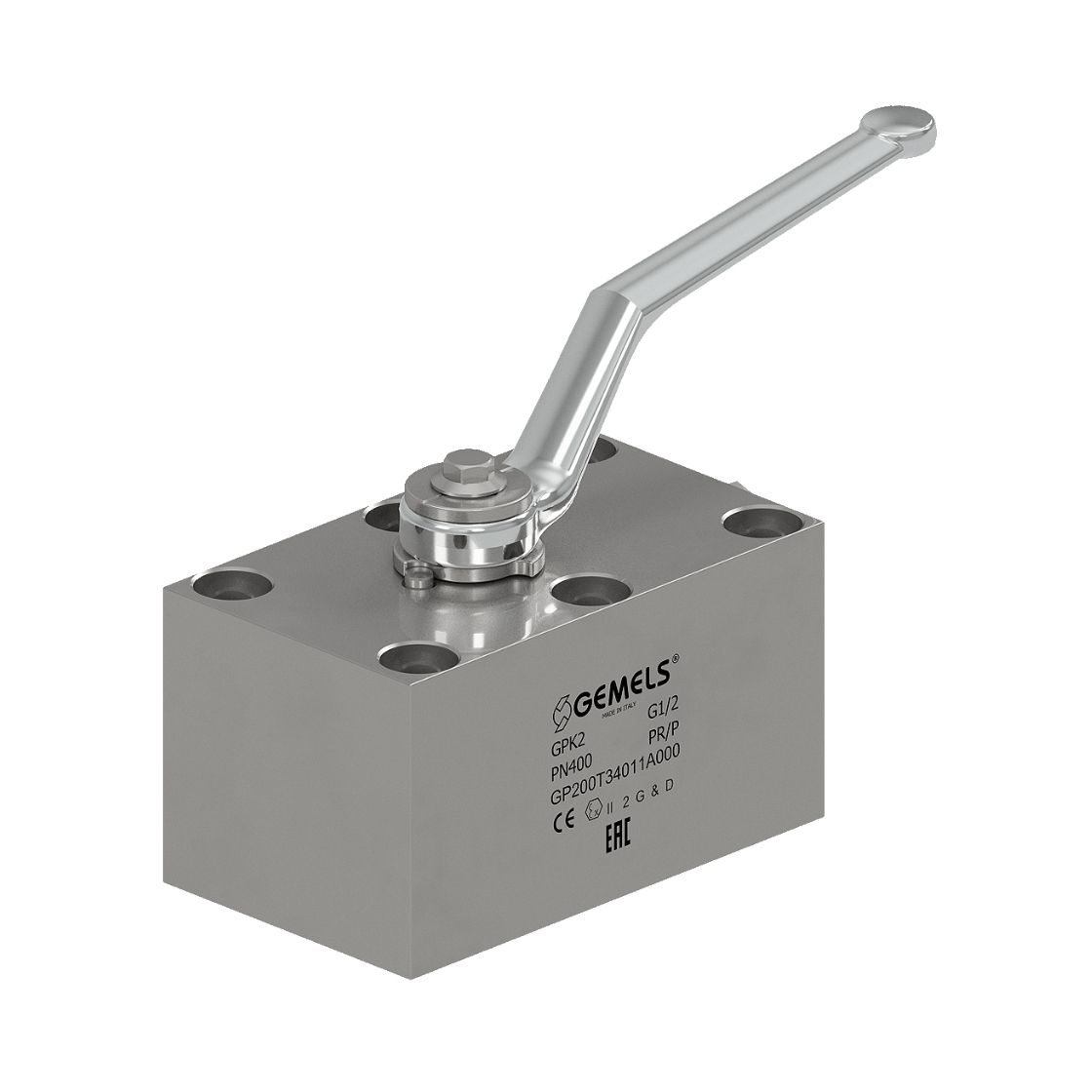

Ball valve for industrial
Gemels GV2 ball valve for excavators
GPK2
Type MANIFOLD
Dimensionsfrom DN6 to DN50
Technical detailsDrilling pattern
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valve for offshore
Gemels GV2 ball valve for excavators

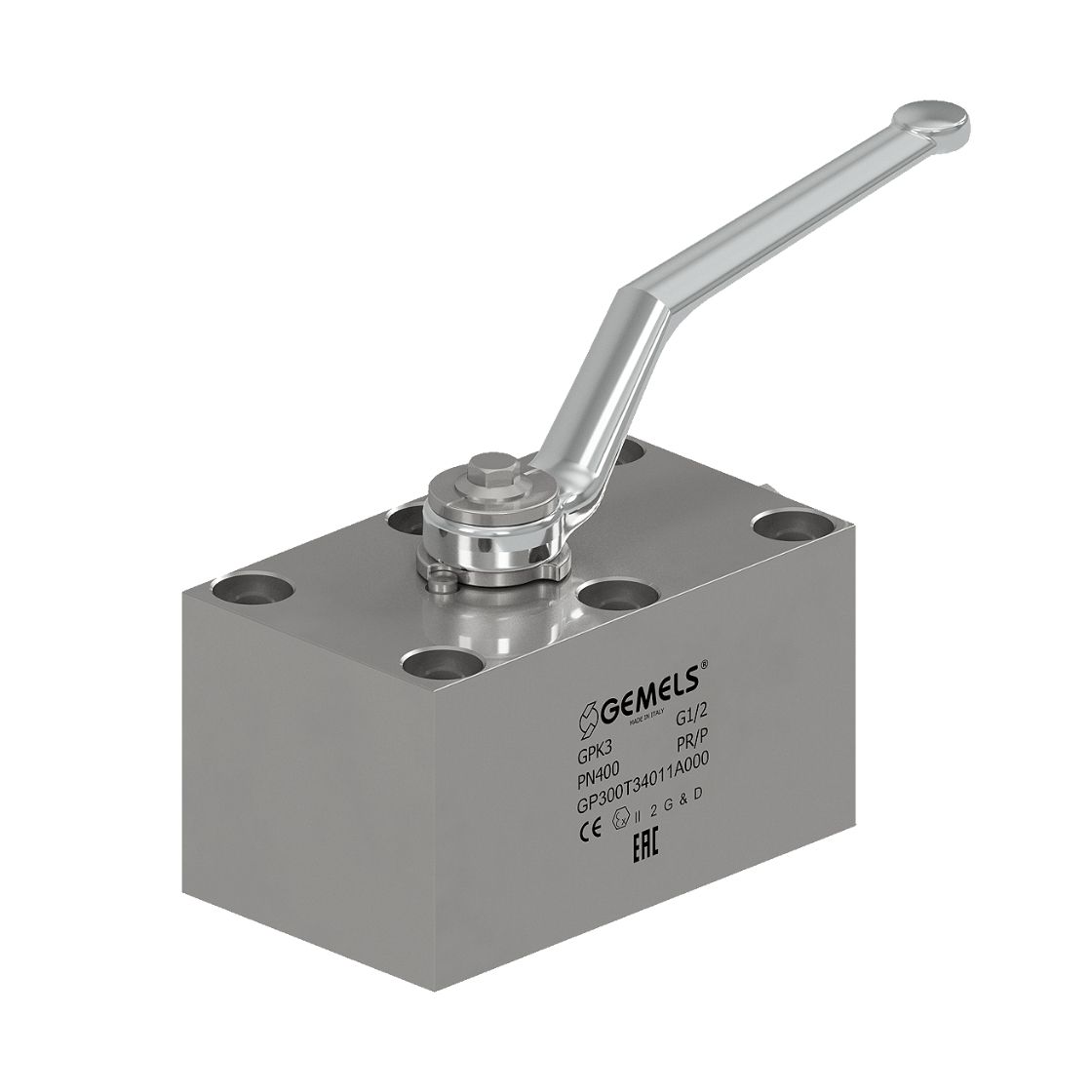

GPK3
Type MANIFOLD
Dimensionsfrom DN6 to DN50
Technical detailsDrilling pattern
Pressure up to PN500
Temperature range from -20°C up to +100°C
Ball valve for steel plant
Gemels GV2 ball valve for excavators

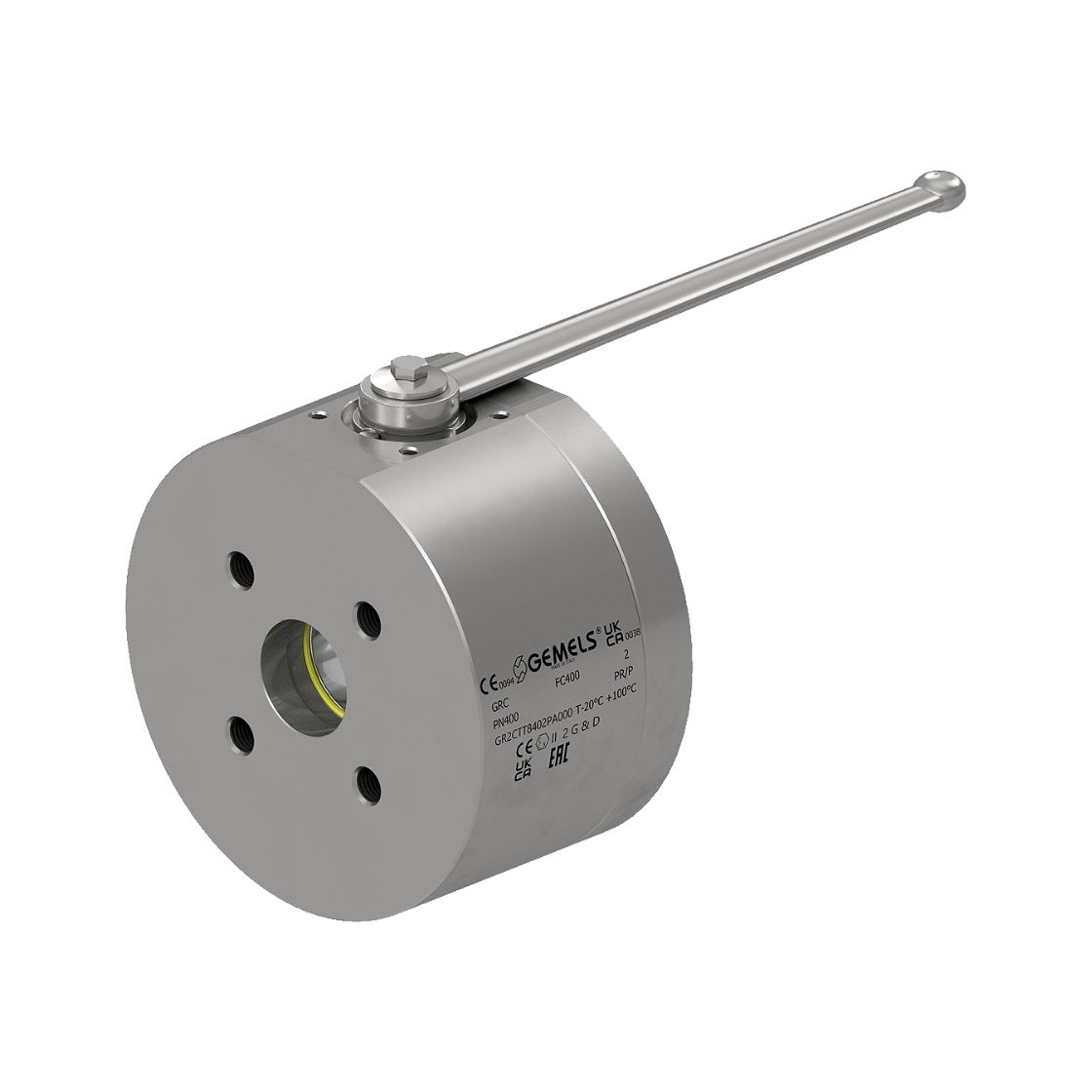

GRC
Type BALL VALVE 2 WAY
Dimensionsfrom DN6 to DN50
Technical details ISO6164 (CETOP)
Pressure up to PN420/S6000
Temperature range from -20°C to +100°C
VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators

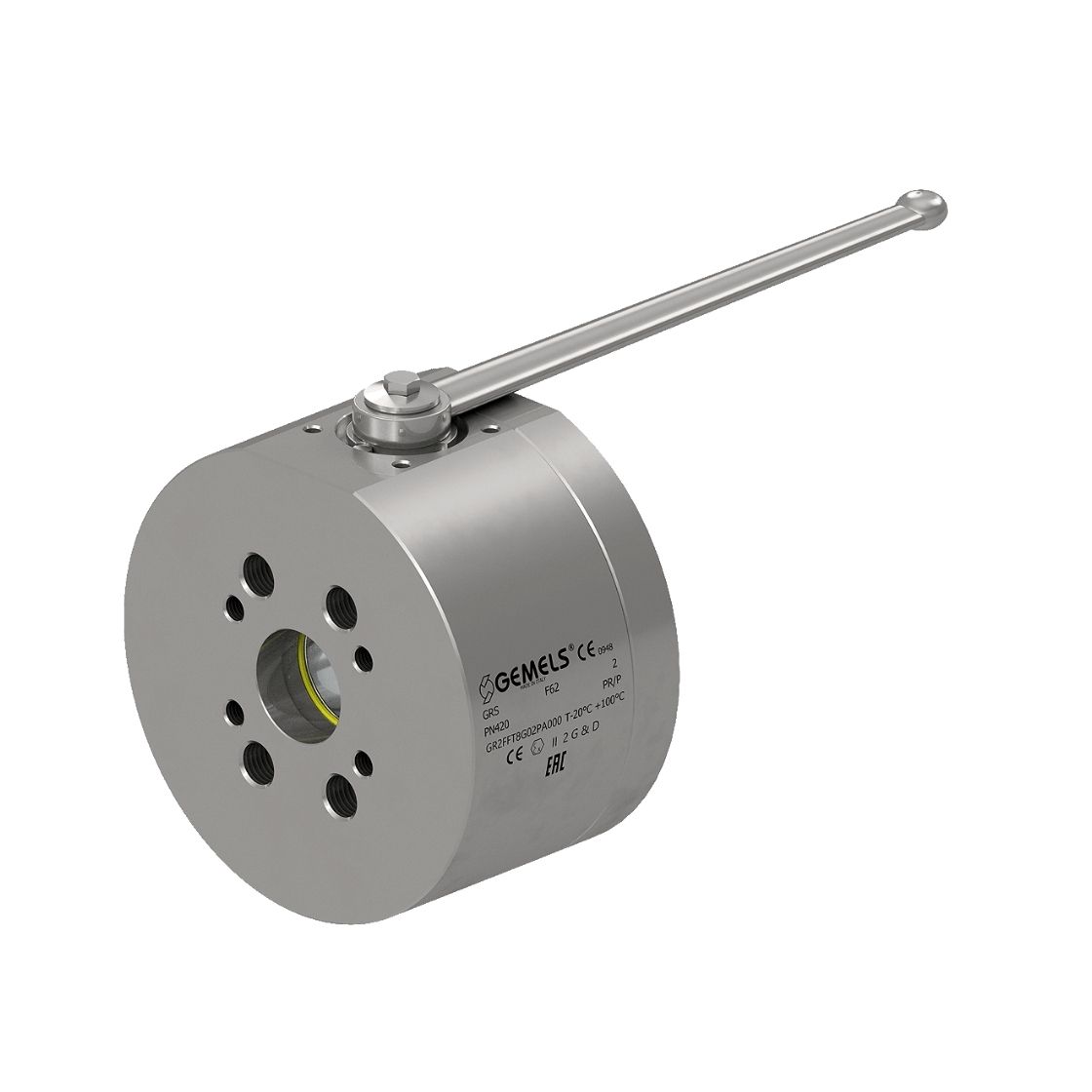

GRS
Type BALL VALVE 2 WAY
Dimensionsfrom DN6 to DN50
Technical details ISO6162-1 / ISO6162 , (SAE J518)
Pressure up to PN420/S6000
Temperature range from -20°C to +100°C
VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators
GRS
Type BALL VALVE 2 WAY
Dimensionsfrom DN6 to DN50
Technical details ISO6162-1 / ISO6162 , (SAE J518)
Pressure up to PN420/S6000
Temperature range from -20°C to +100°C

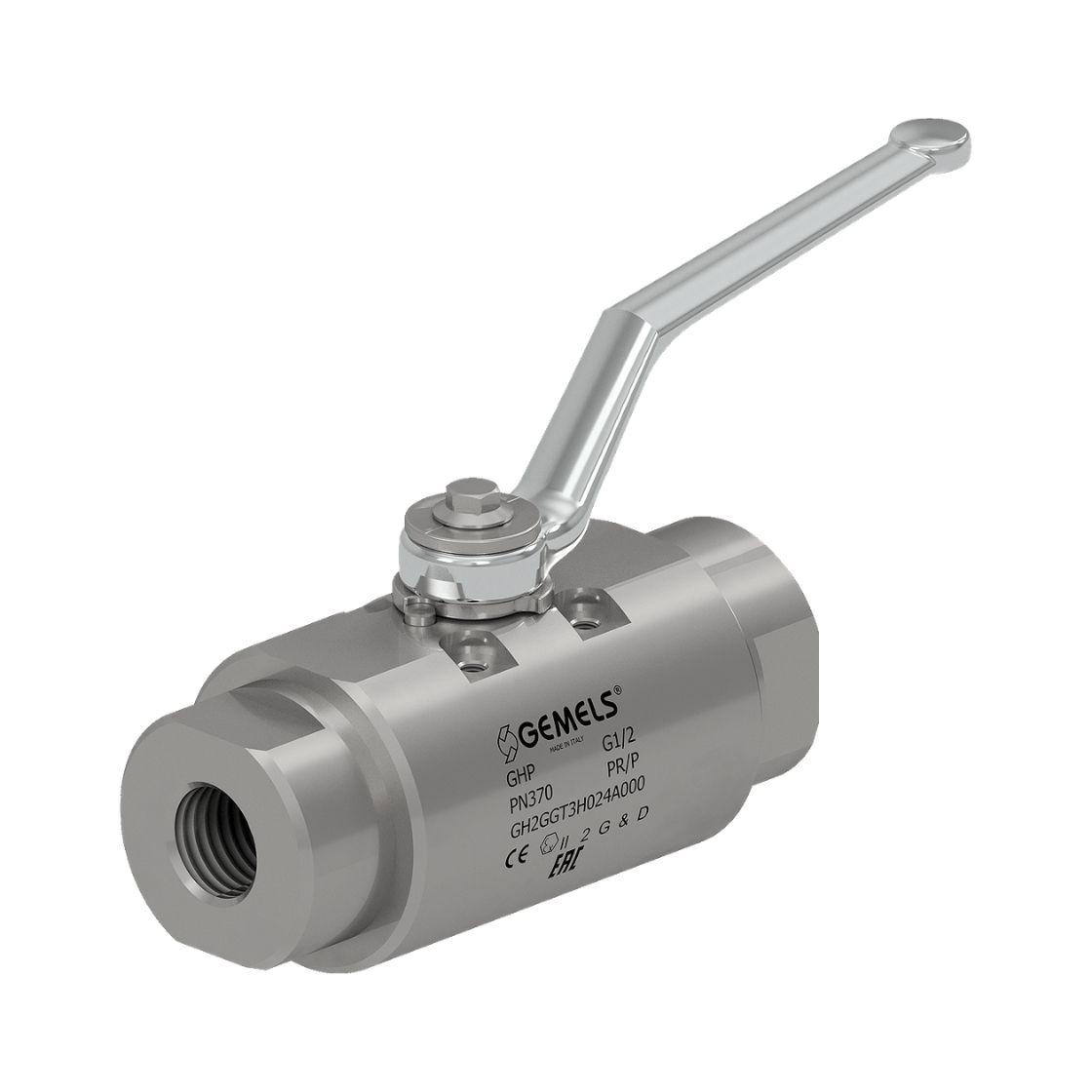

Ball valve for fire-fighting systems
Gemels GV2 ball valve for excavators
GHP
Type BALL VALVE 2 WAY
Dimensionsfrom DN6 to DN50
Technical details BSP-NPT
Pressure up to PN370
Temperature range from -20°C up to +100°C

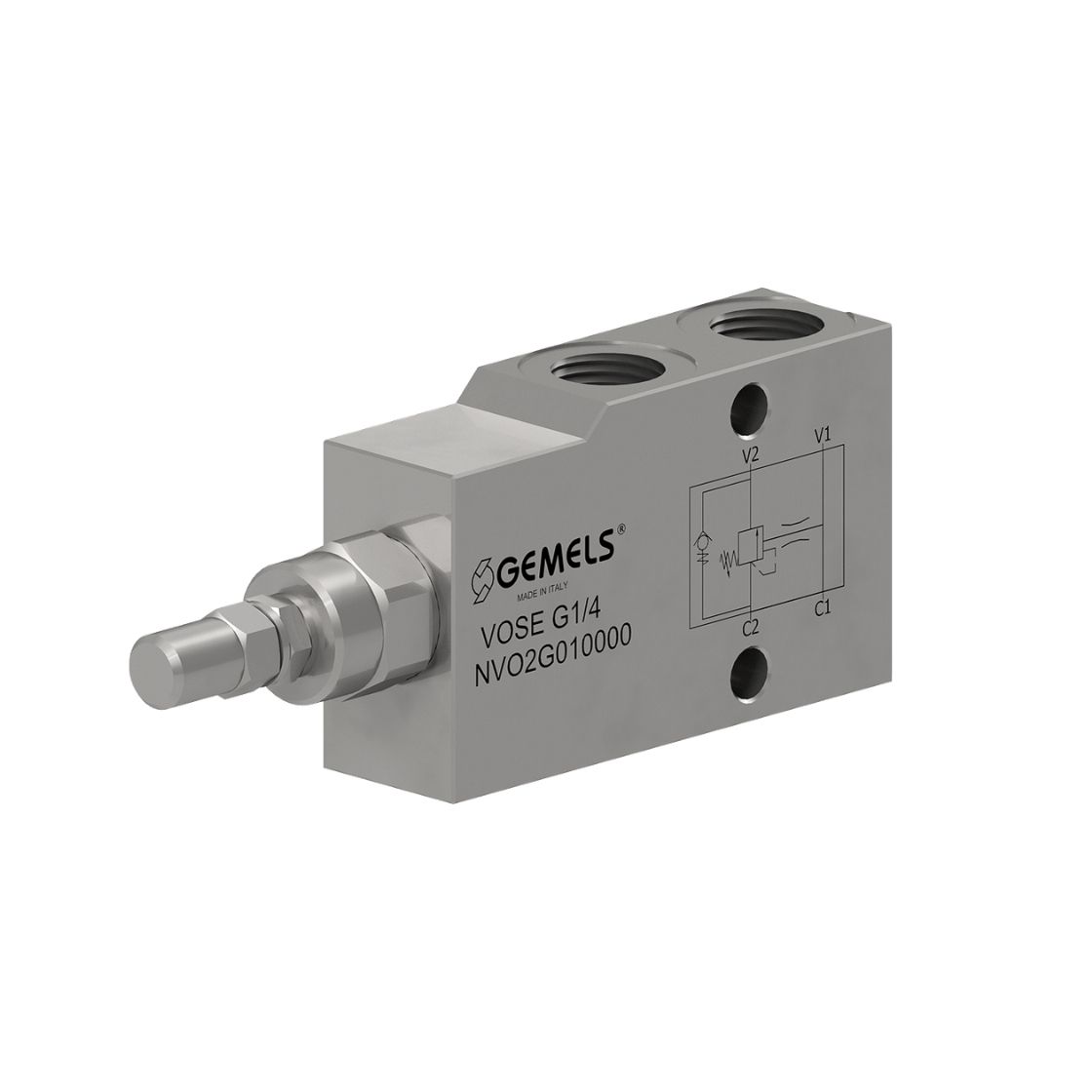

Overcenter valve single effect for lifting equipment
Gemels GV2 ball valve for excavators
VOSE
Type OVERCENTER VALVE SINGLE EFFECT
Dimensions from DN6 to DN20
Technical details BSP-NPT-SAE
Pressure up to PN350
Temperature range from -20°C up to +90°C

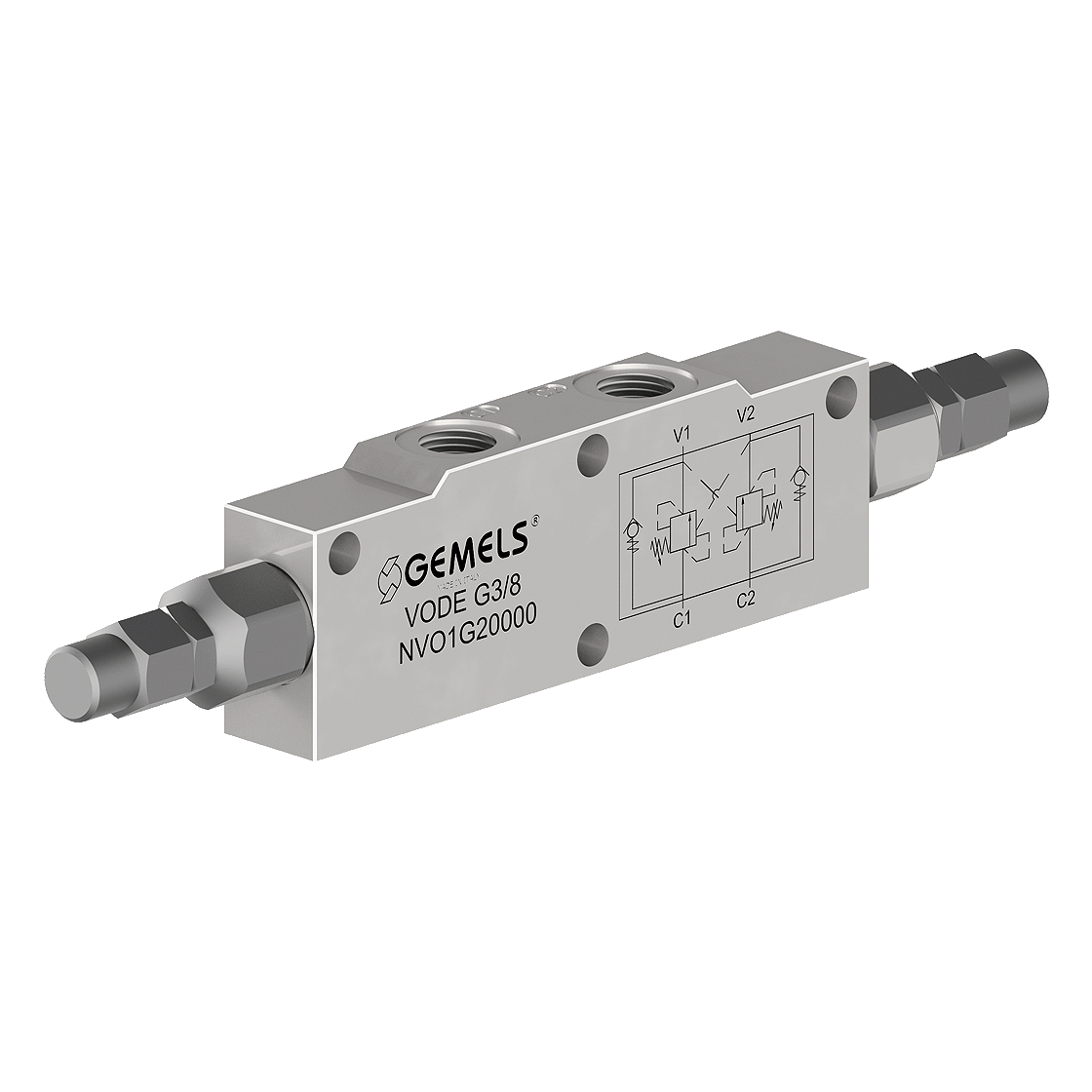

OVERCENTER VALVE DOUBLE EFFECT FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators
VODE
Type OVERCENTER VALVE DOUBLE EFFECT
Dimensionsfrom DN6 to DN20
Technical details BSP-NPT-SAE
Pressure up to PN350
Temperature range from -20°C up to +90°C
DIRECT ACTING RELIEF VALVE WITH MANIFOLD
Gemels GV2 ball valve for excavators

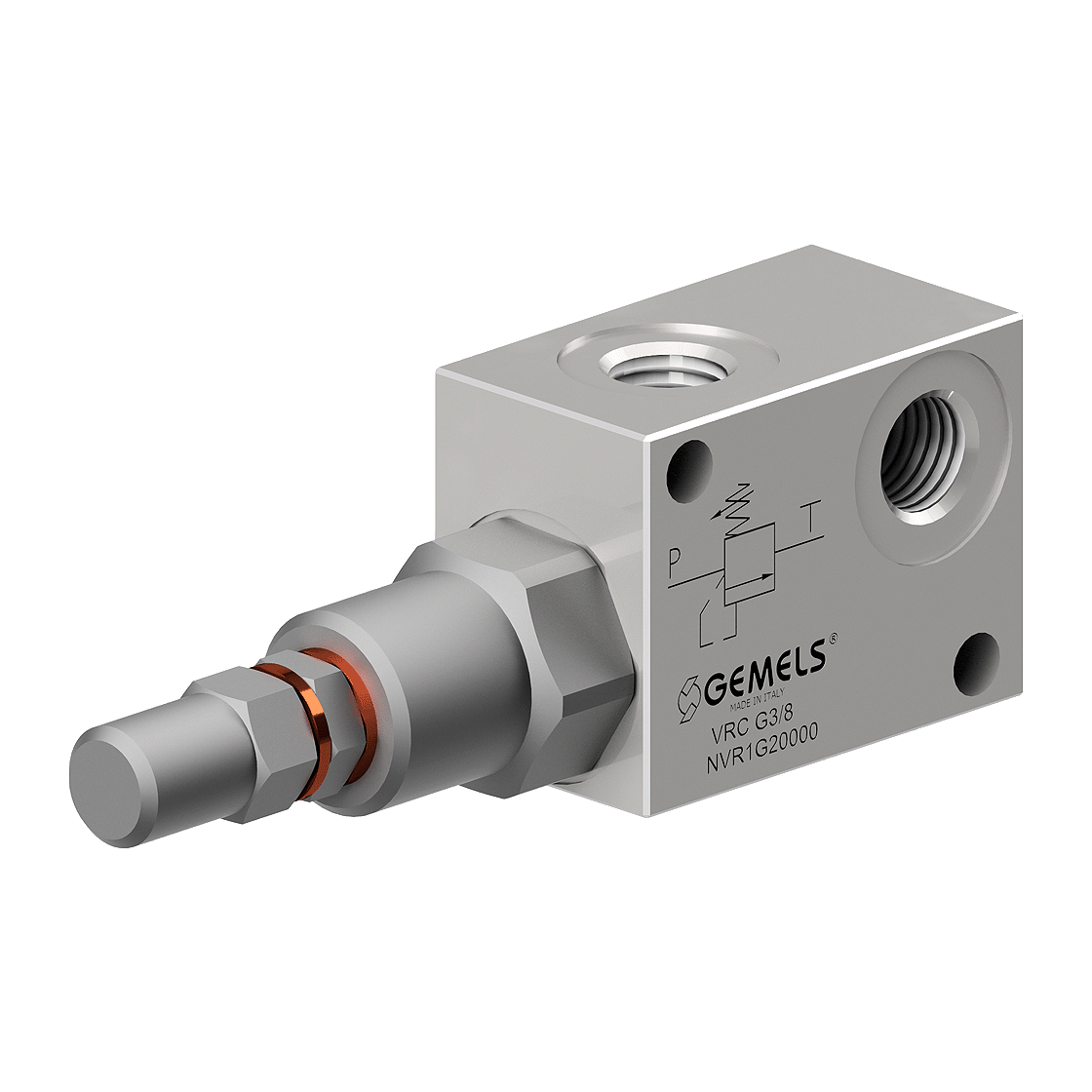

VRC
Type PRESSURE RELIEF CONTROL VALVE
Dimensions from DN6 to DN10
Technical detailsBSP-NPT-SAE
Pressure up to PN350
Temperature range from -20°C up to +80°C
VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators

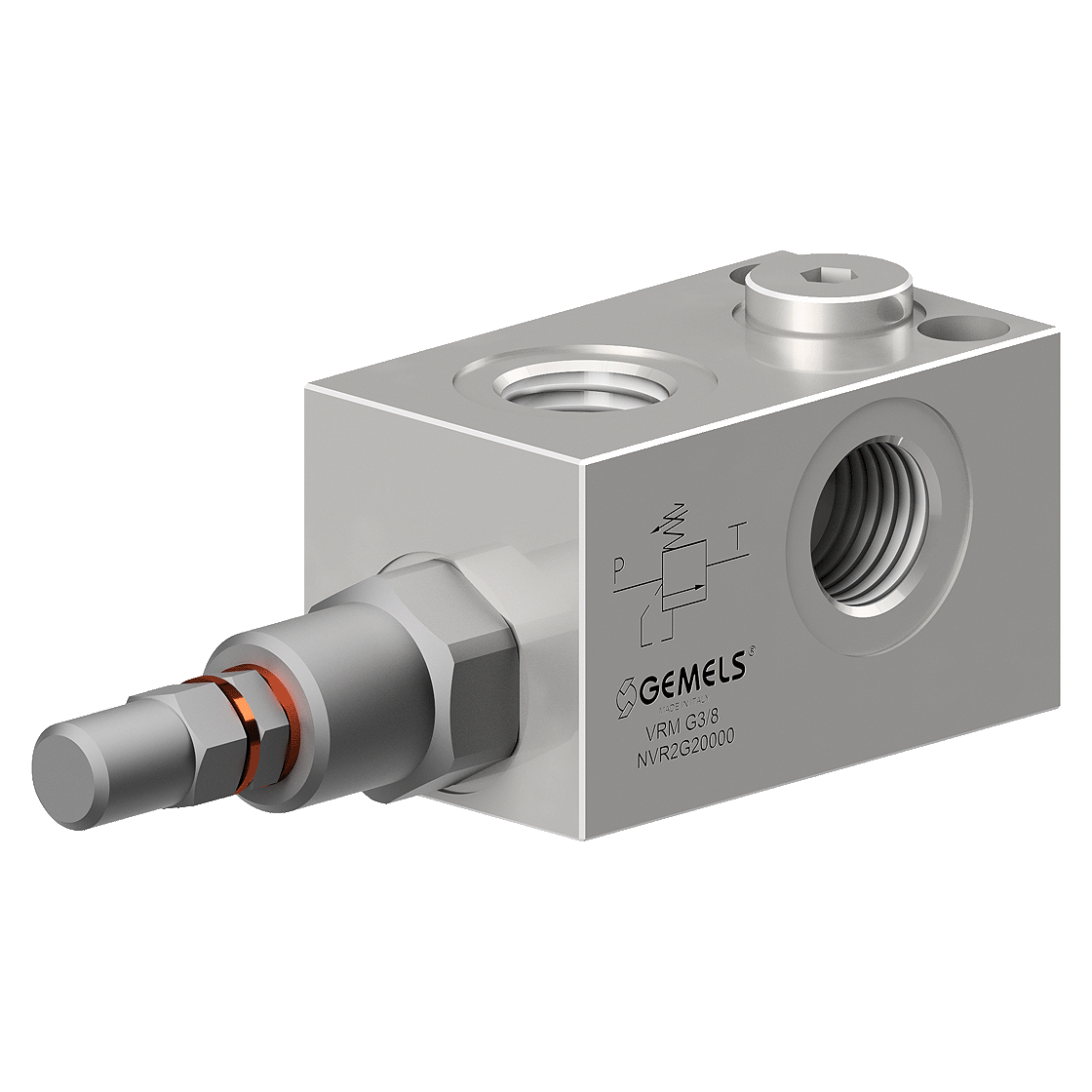

VRM
Type PRESSURE RELIEF CONTROL VALVE
Dimensions from DN10 to DN20
Technical detailsBSP-NPT-SAE
Pressure up to PN350
Temperature range from -20°C up to +80°C

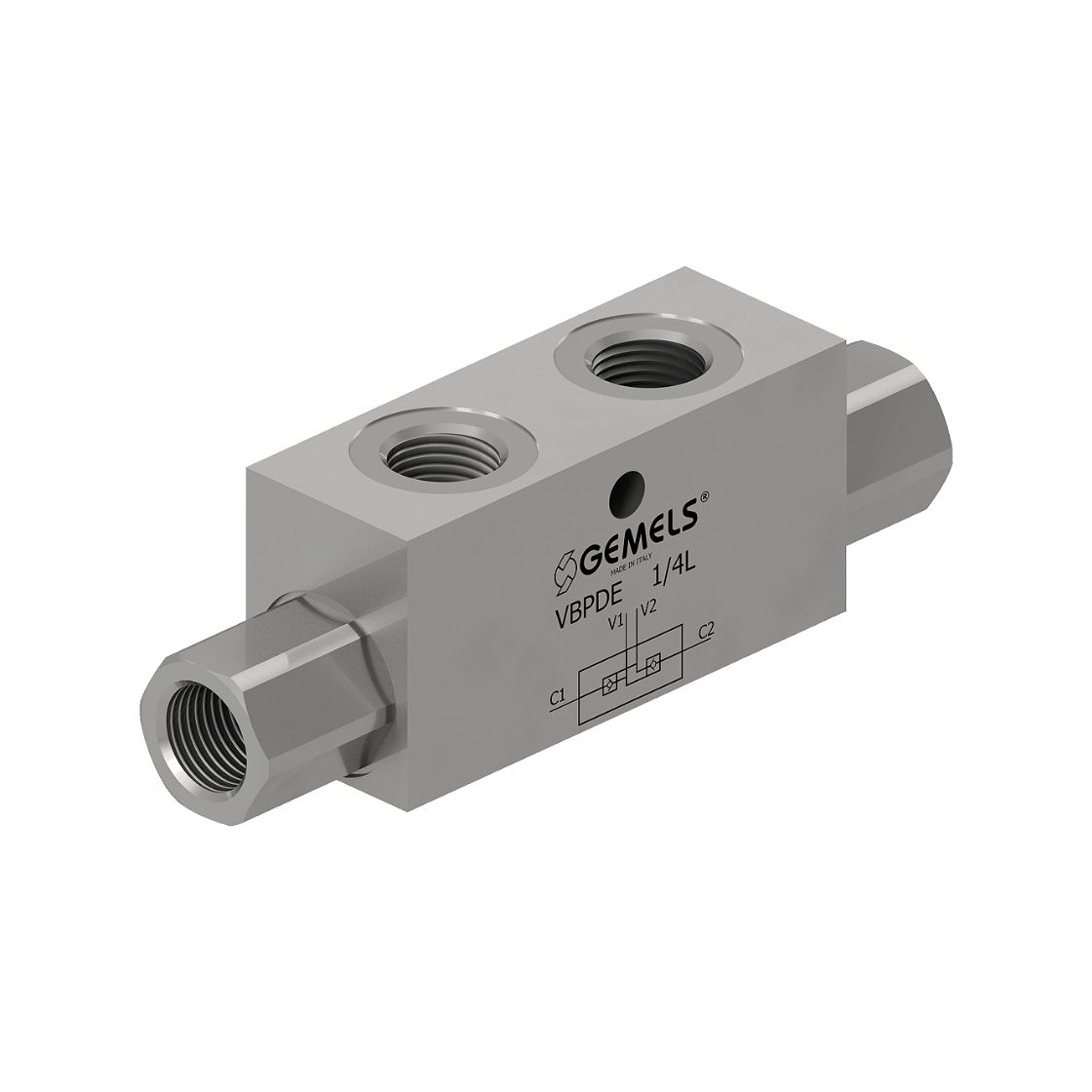

VALVE FOR FORESTRY SECTOR
Gemels GV2 ball valve for excavators
VBP
Type SINGLE/DOUBLE PILOT OPERATED CHECK VALVE
Dimensions from DN6 to DN20
Technical details BSP
Pressure up to PN350
Temperature range from -20°C up to +80°C
Valve for lifting equipment sector
Gemels GV2 ball valve for excavators

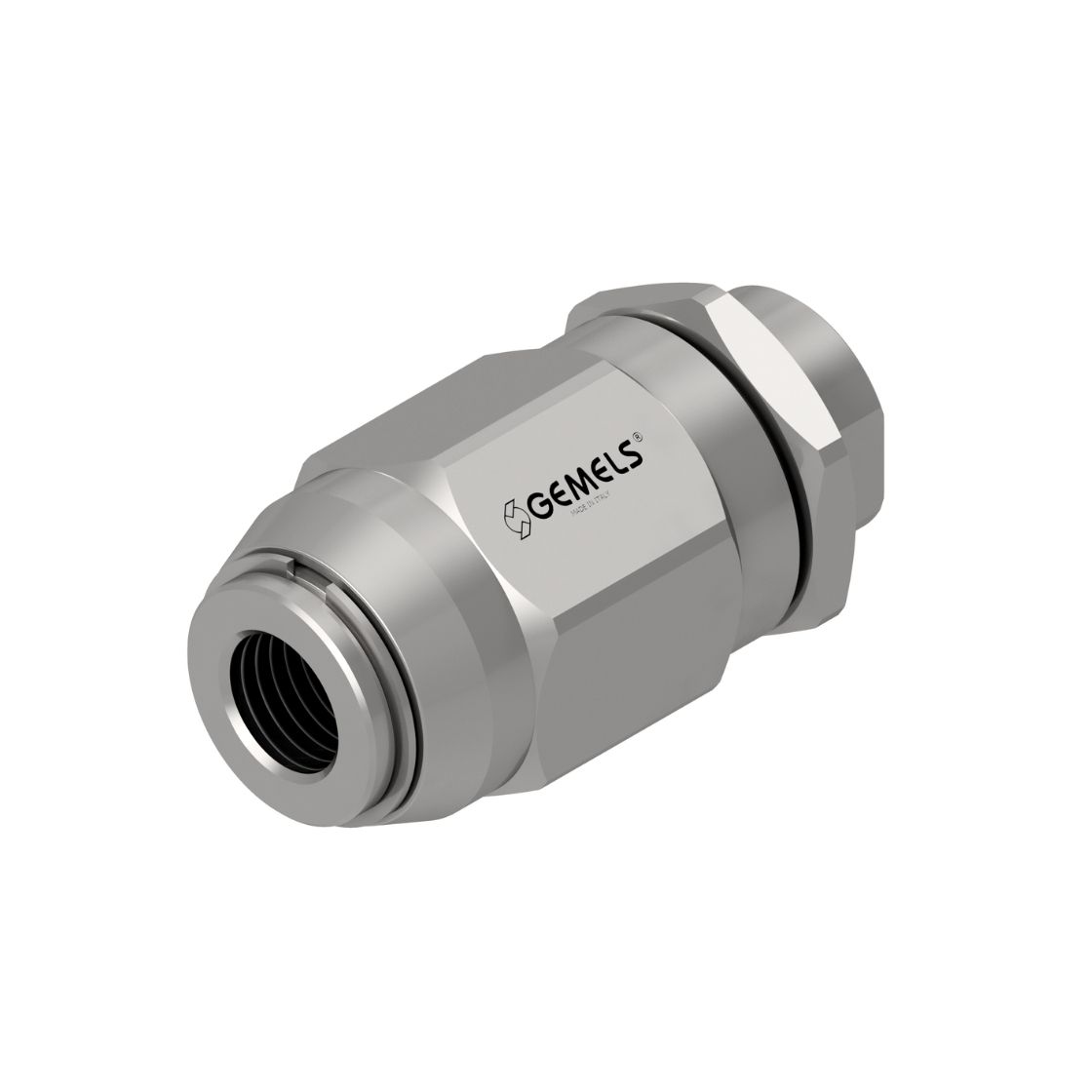

RFM / BDM
Type FLOW REGULATOR BARREL TYPE
Dimensions from DN6 to DN25
Technical details BSP
Pressure up to PN350
Temperature range from -20°C up to +80°C
VALVE FOR AGRICULTURE
Gemels GV2 ball valve for excavators

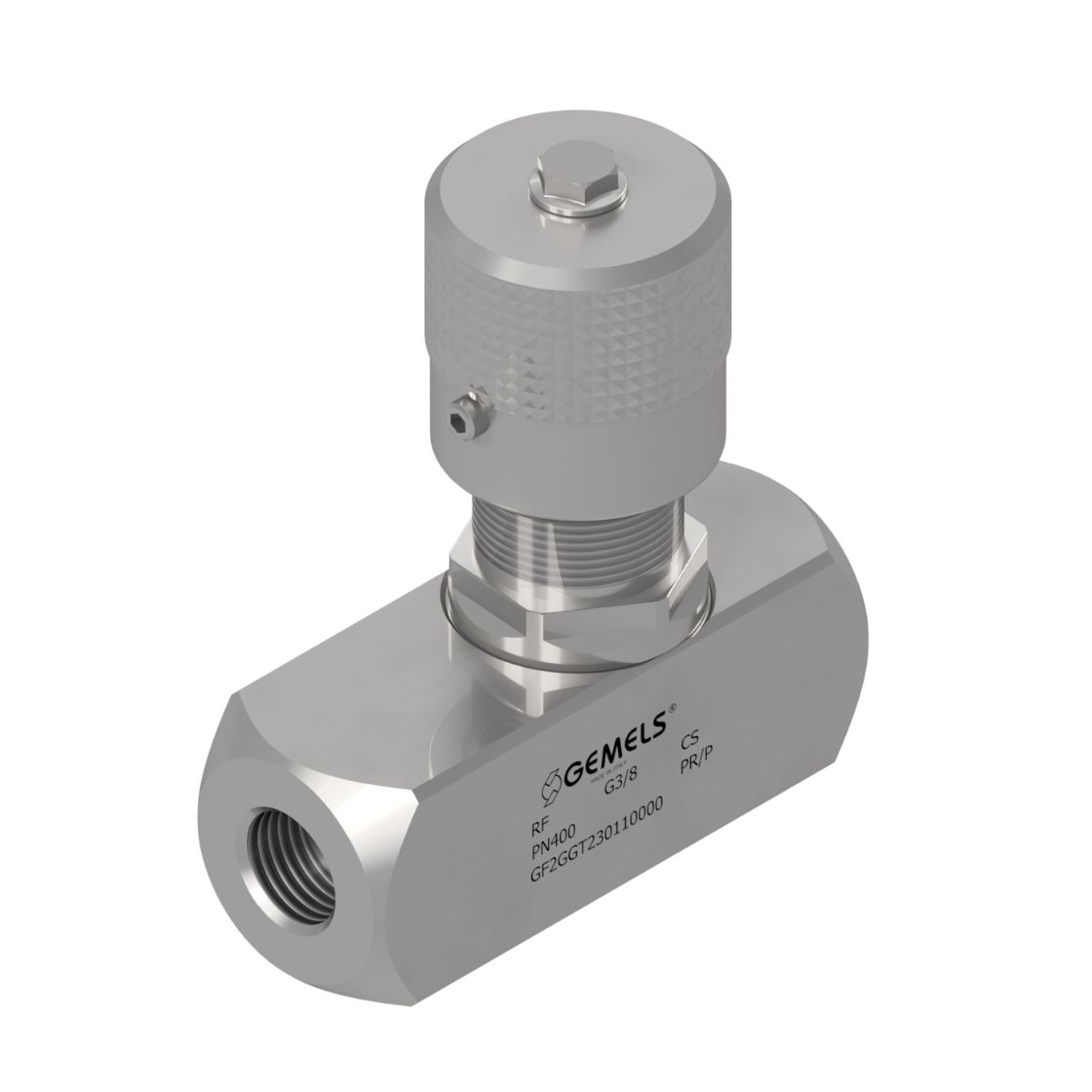

RF
Type UNIDIRECTIONAL FLOW CONTROL
Dimensions from DN6 to DN25
Technical details BSP-NPT
Pressure up to PN400
Temperature range from -20°C up to +100°C
VALVE FOR AGRICULTURE
Gemels GV2 ball valve for excavators

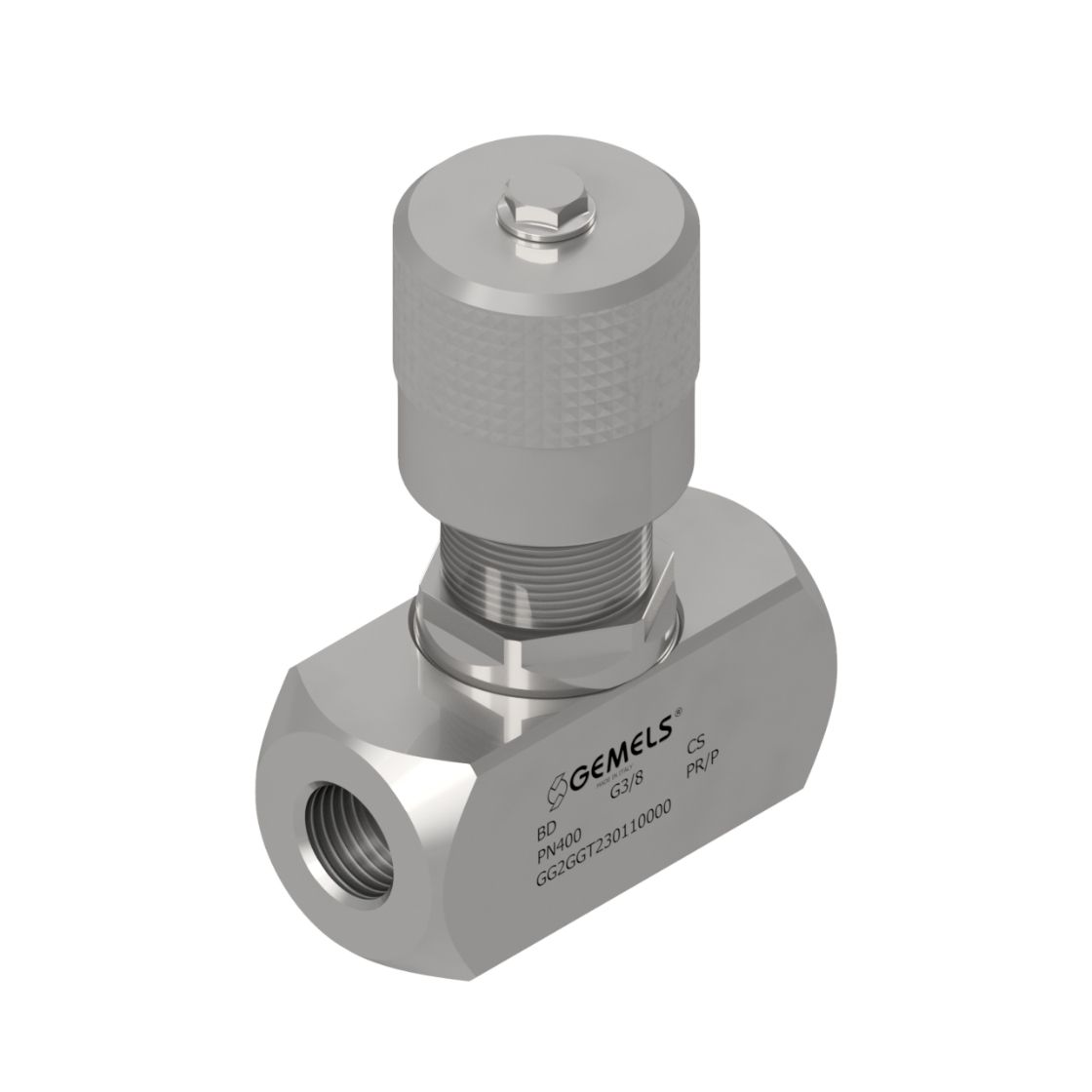

BD
Type BIDIRECTIONAL FLOW CONTROLL
Dimensions from DN6 to DN25
Technical details BSP-NPT
Pressure up to PN400
Temperature range from -20°C up to +100°C
VALVE FOR AGRICULTURE
Gemels GV2 ball valve for excavators

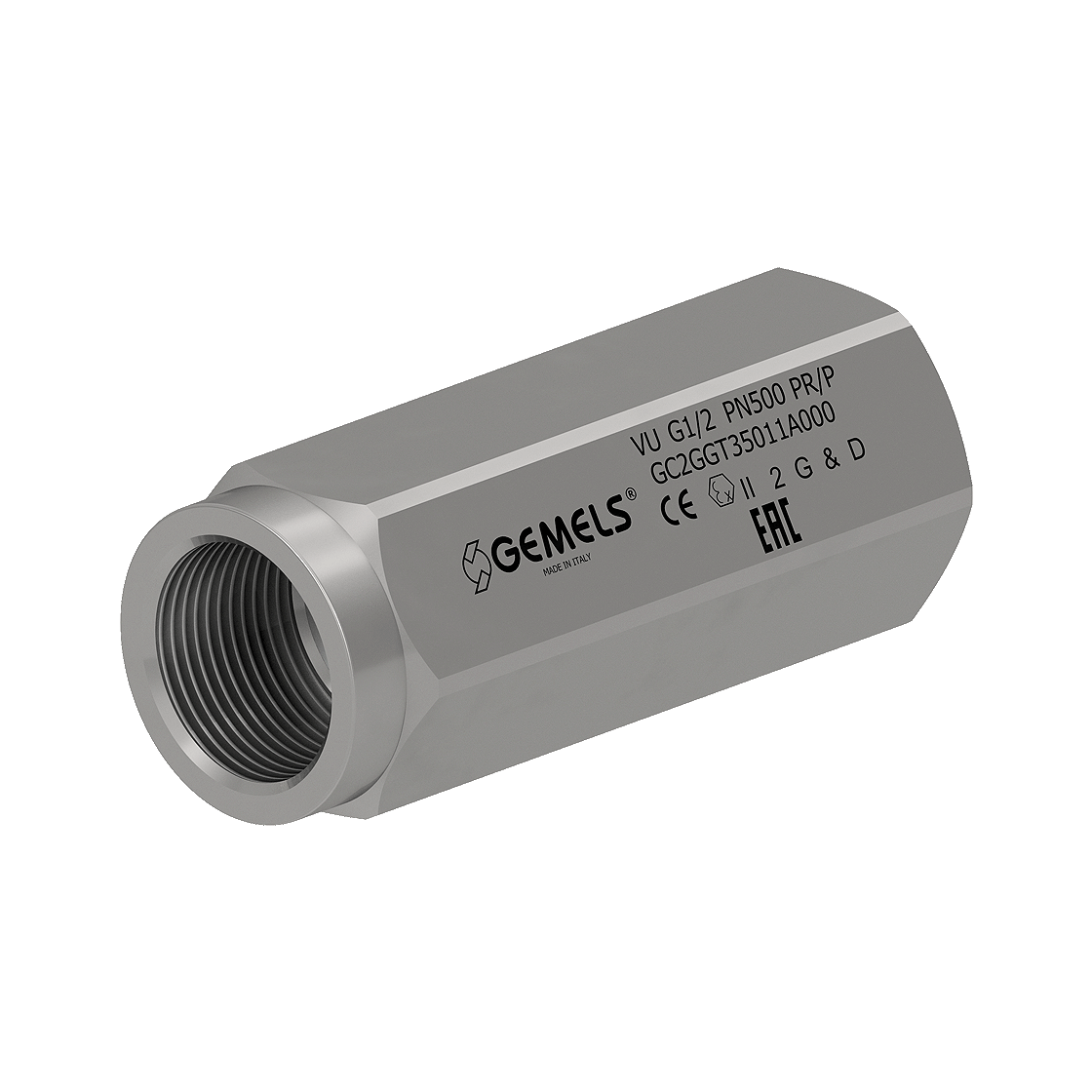

VU
Type UNIDIRECTIONAL CHECK VALVE
Dimensions from DN6 to DN50
Technical details BSP-NPT
Pressure up to PN500
Temperature range from -20°C up to +100°C

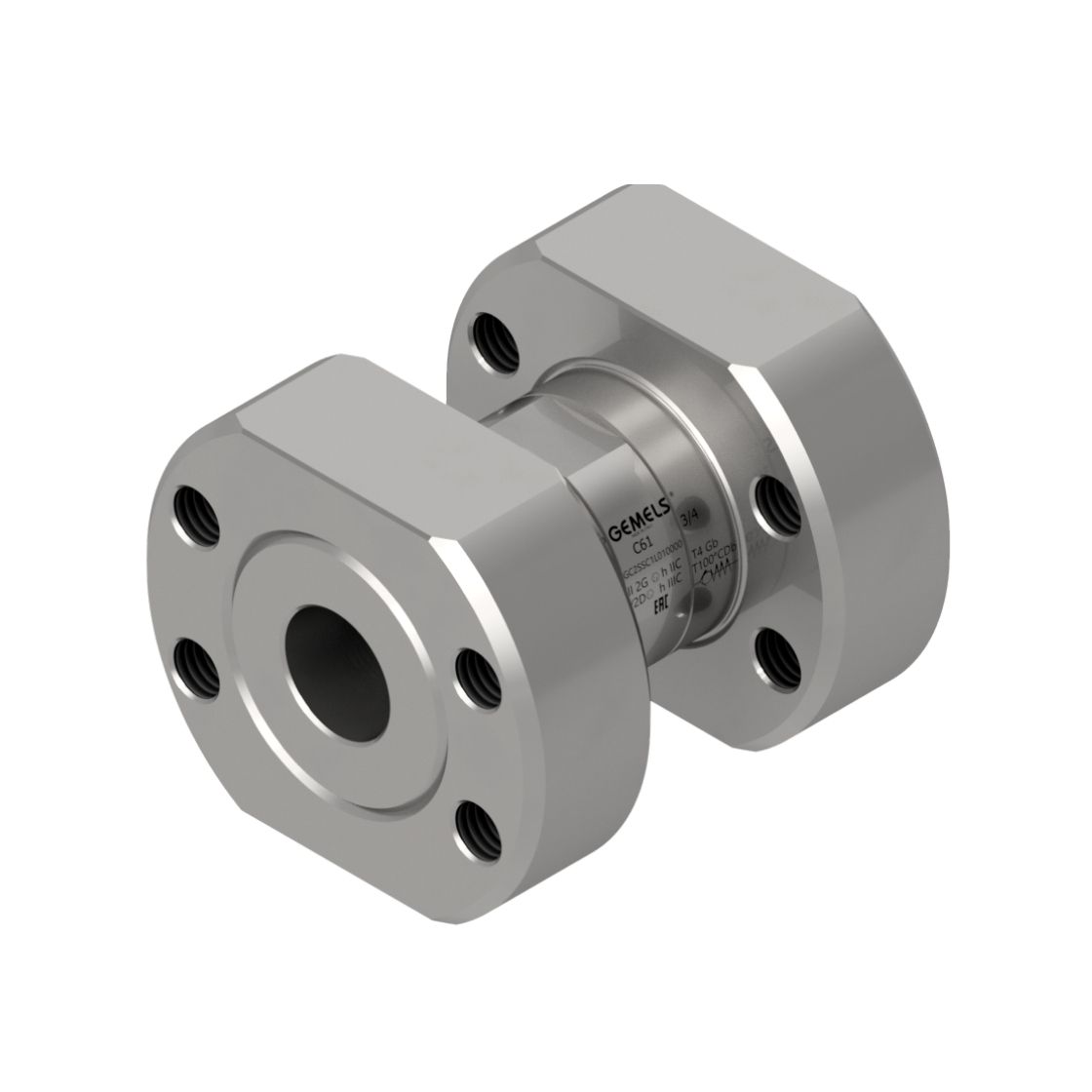

UNIDIRECTIONAL CHECK VALVE WITH FLANGES
Gemels GV2 ball valve for excavators
VUF / VUS
Type UNIDIRECTIONAL CHECK VALVE
Dimensions from DN13 to DN50
Technical details SAE
Pressure up to 420
Temperature range from -20°C up to +100°C

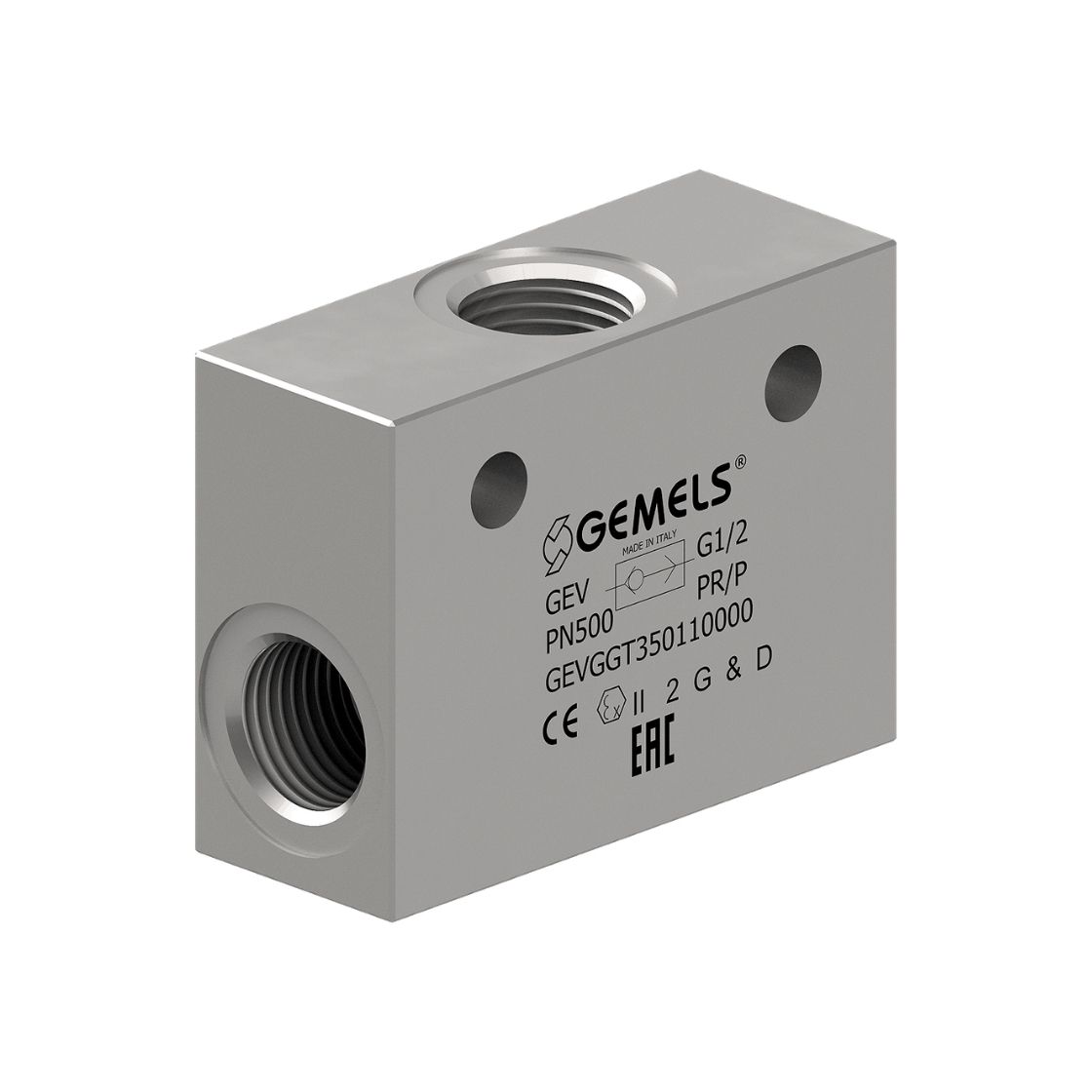

VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators
GEV
Type SHUTTLE VALVE
Dimensions from DN6 to DN25
Technical details BSP-NPT-SAE
Pressureup to PN500
Temperature range from - 20°C up to +100°C

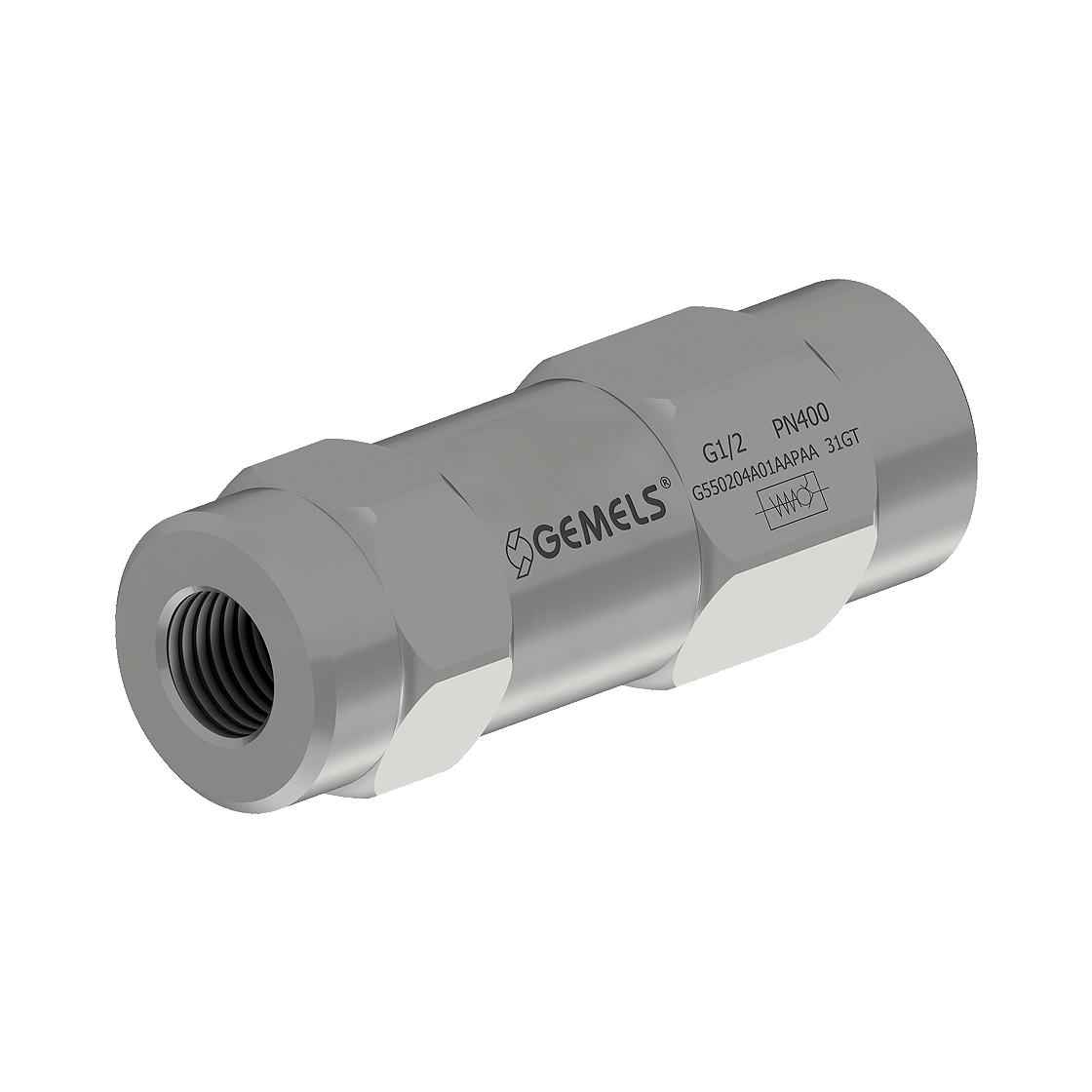

VALVE FOR HEAVY EQUIPMENT
Gemels GV2 ball valve for excavators
GPS
TypeSINGLE PILOT OPERATED CHECK VALVE 3WAY
Dimensions from DN6 to DN25
Technical detailsBSP
Pressure up to PN400
Temperature range from -20°C up to +100°C
Custom ball valves for elevator and building sectors
Gemels GV2 ball valve for excavators

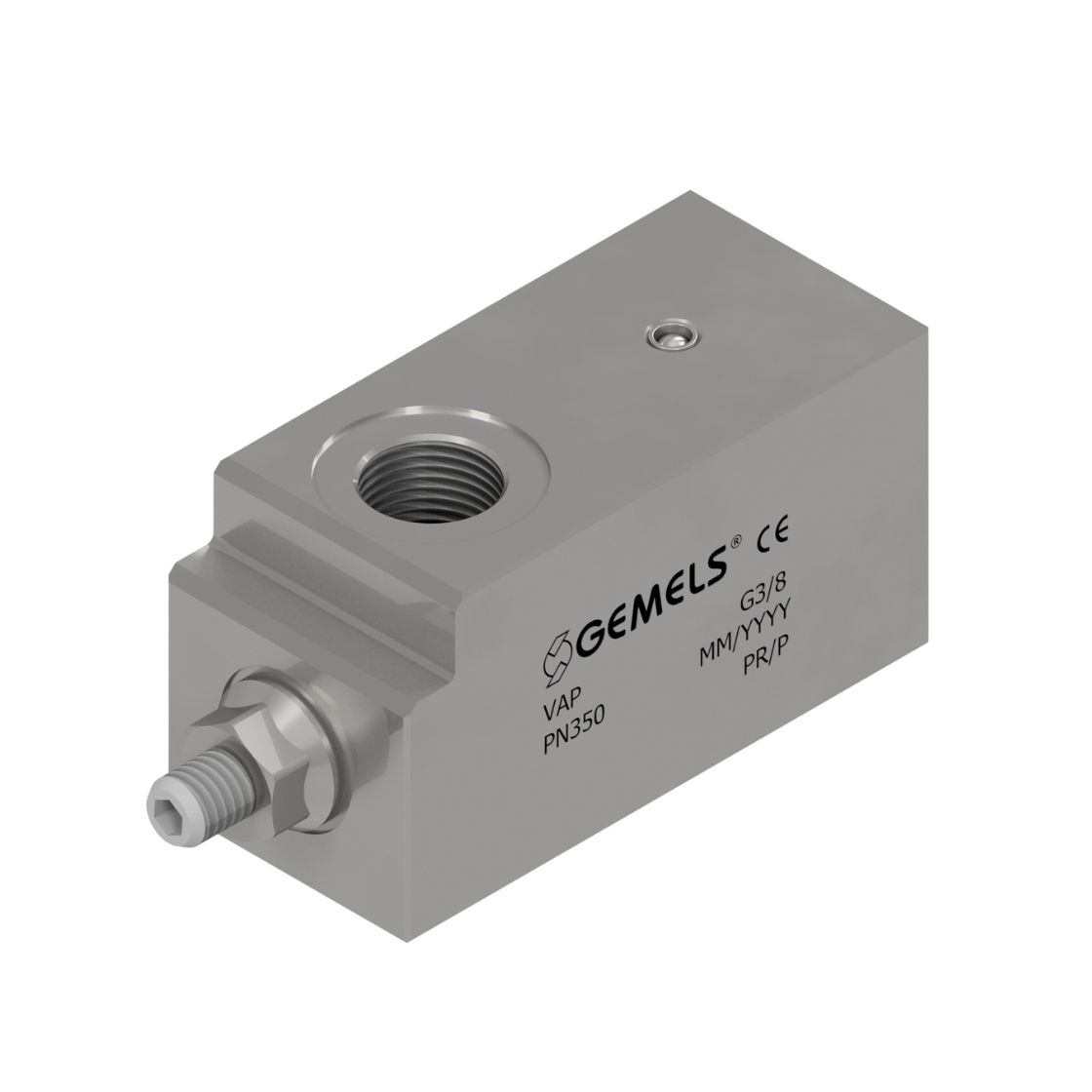

VAP for ELEVATOR\BUILDING
VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators

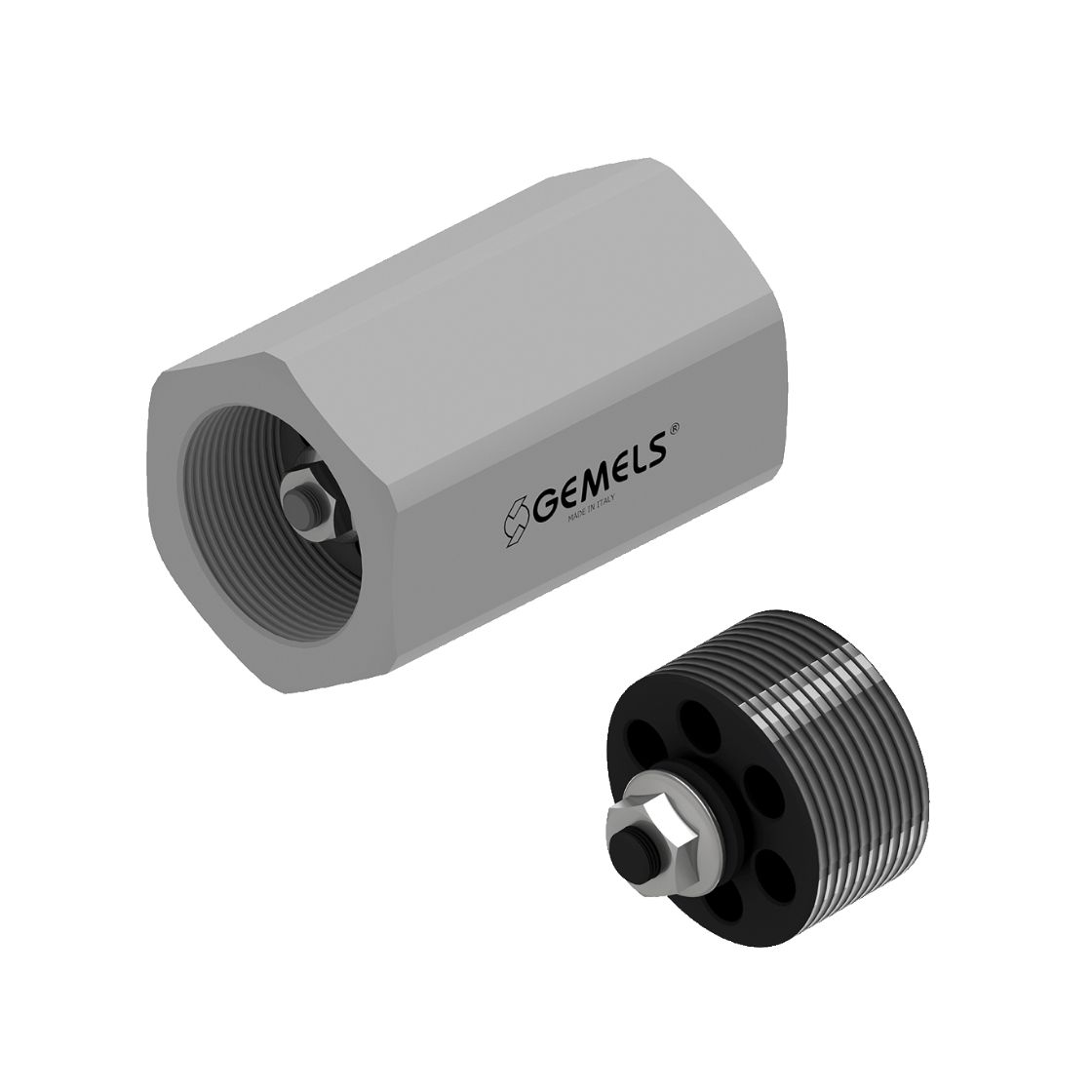

VB VUBA
TypeHOSE BREAK VALVE
Dimensions from DN6 to DN25
Technical detailsBSP-NPT-SAE
Pressure up to PN350
Temperature range from -20°C up to +100°C
Diverter for agriculture and tractors
Gemels GV2 ball valve for excavators

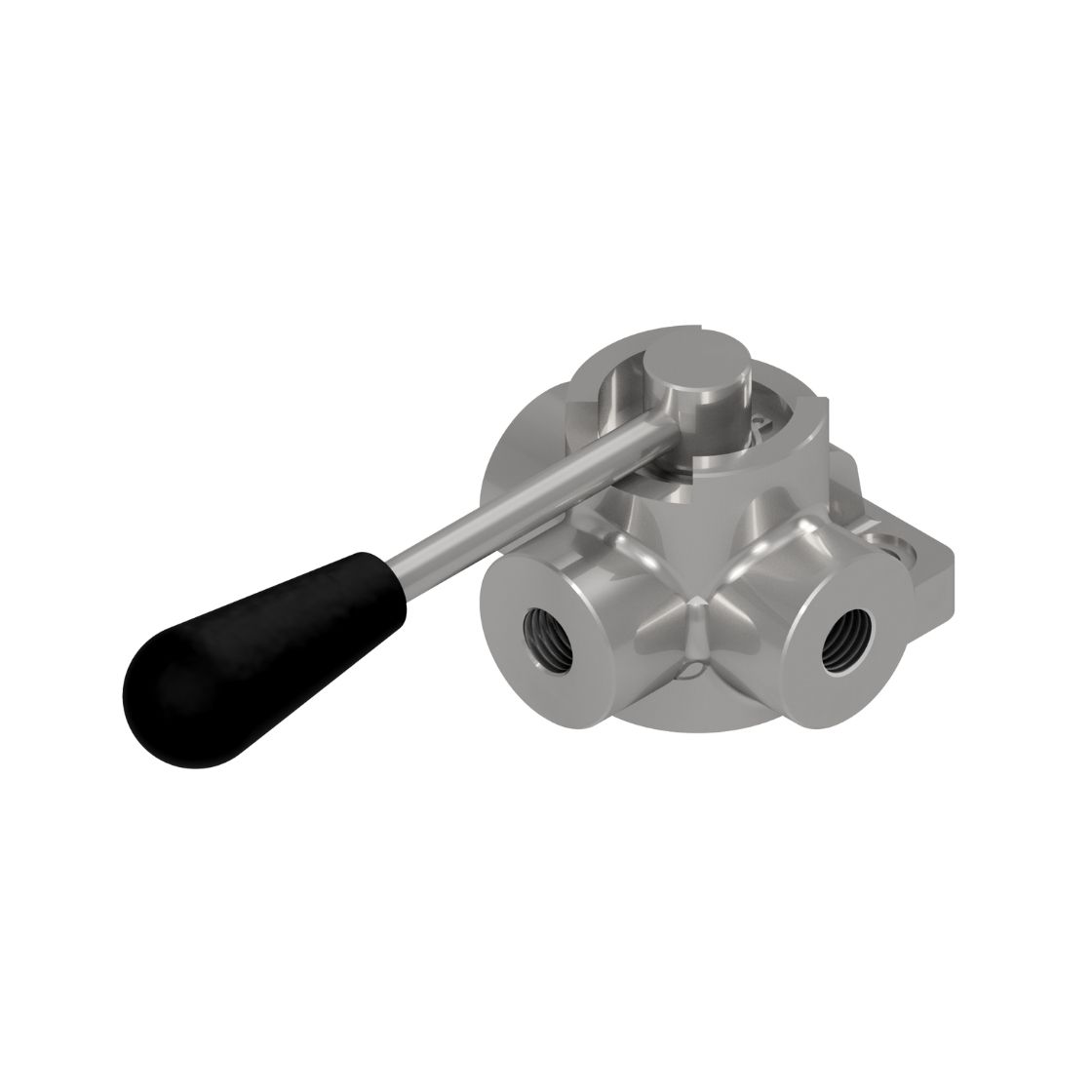

DDF3-A
Type3 WAY FLOW DIVERTER
Dimensions from DN6 to DN25
Technical detailsBSP
Pressure up tp PN500
Diverter for agricolture
Gemels GV2 ball valve for excavators

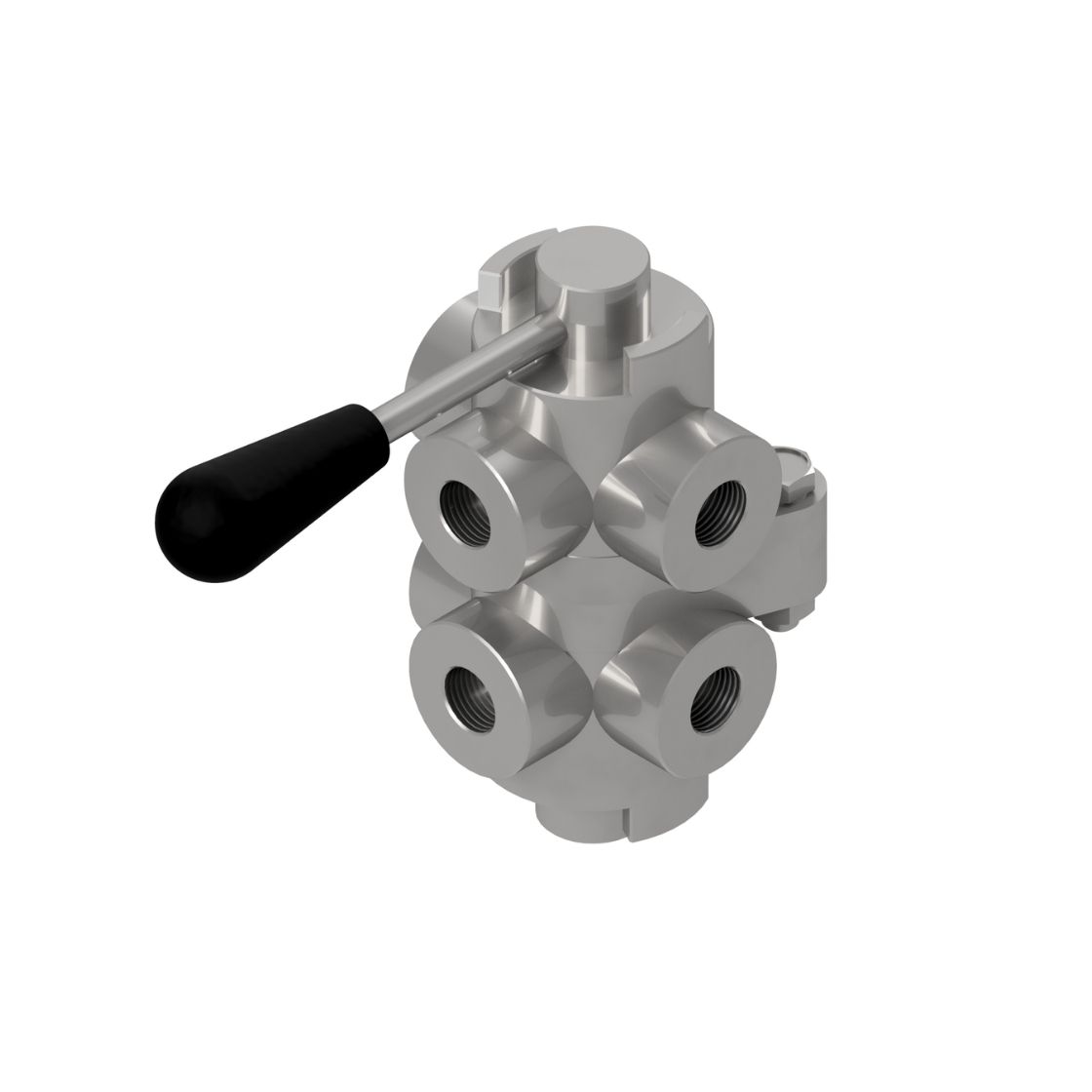

DDF6-A
Type6WAY FLOW DIVERTER
Dimensions from DN6 to DN20
Technical detailsBSP
Pressure up tp PN500
VALVE FOR LIFTING EQUIPMENT
Gemels GV2 ball valve for excavators

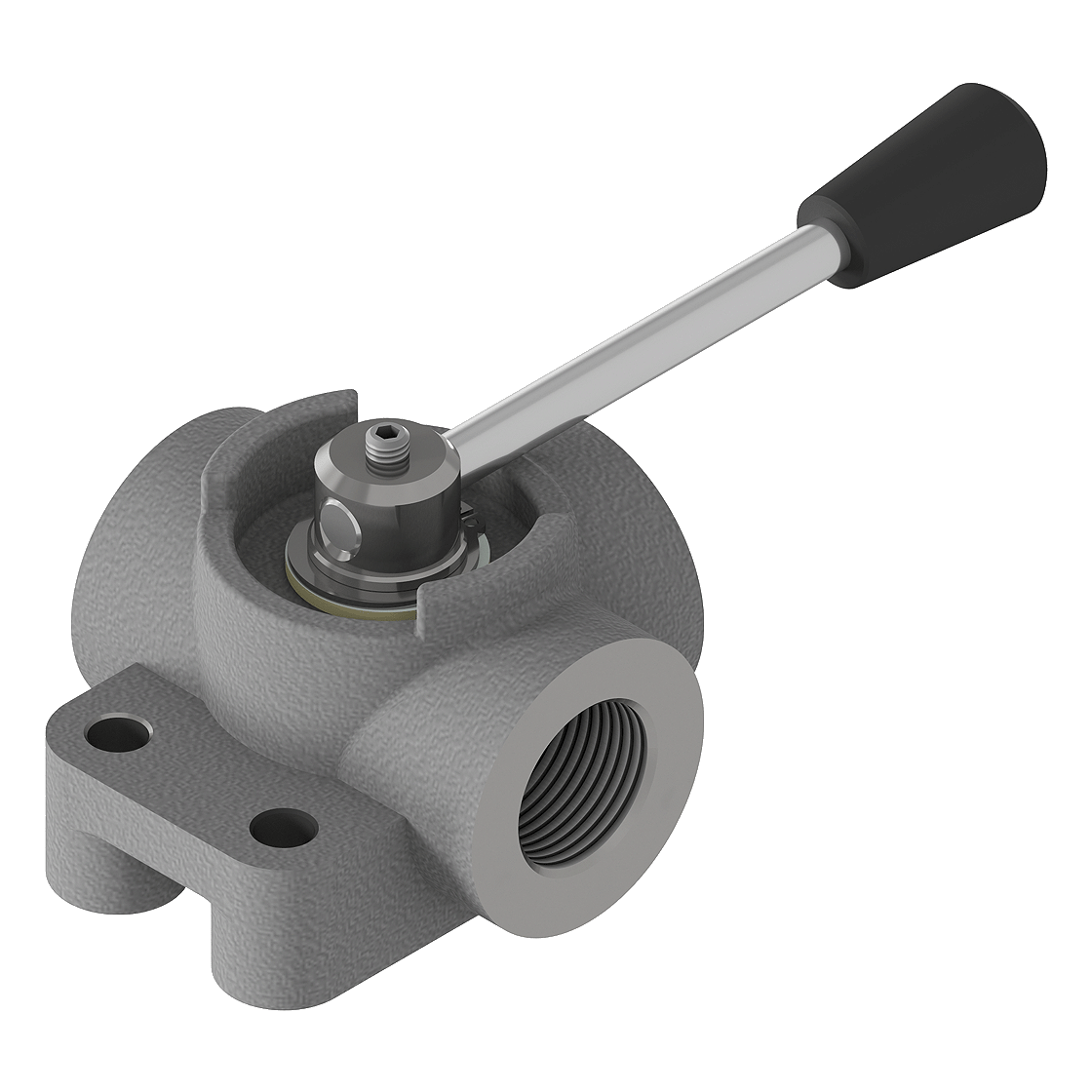

DDF
TypeFLOW DIVERTER 3WAY
Dimensions from DN6 to DN25
Technical detailsBSP
Pressure up to PN300
Ball valves for the Oil & Gas sector
Gemels GV2 ball valve for excavators

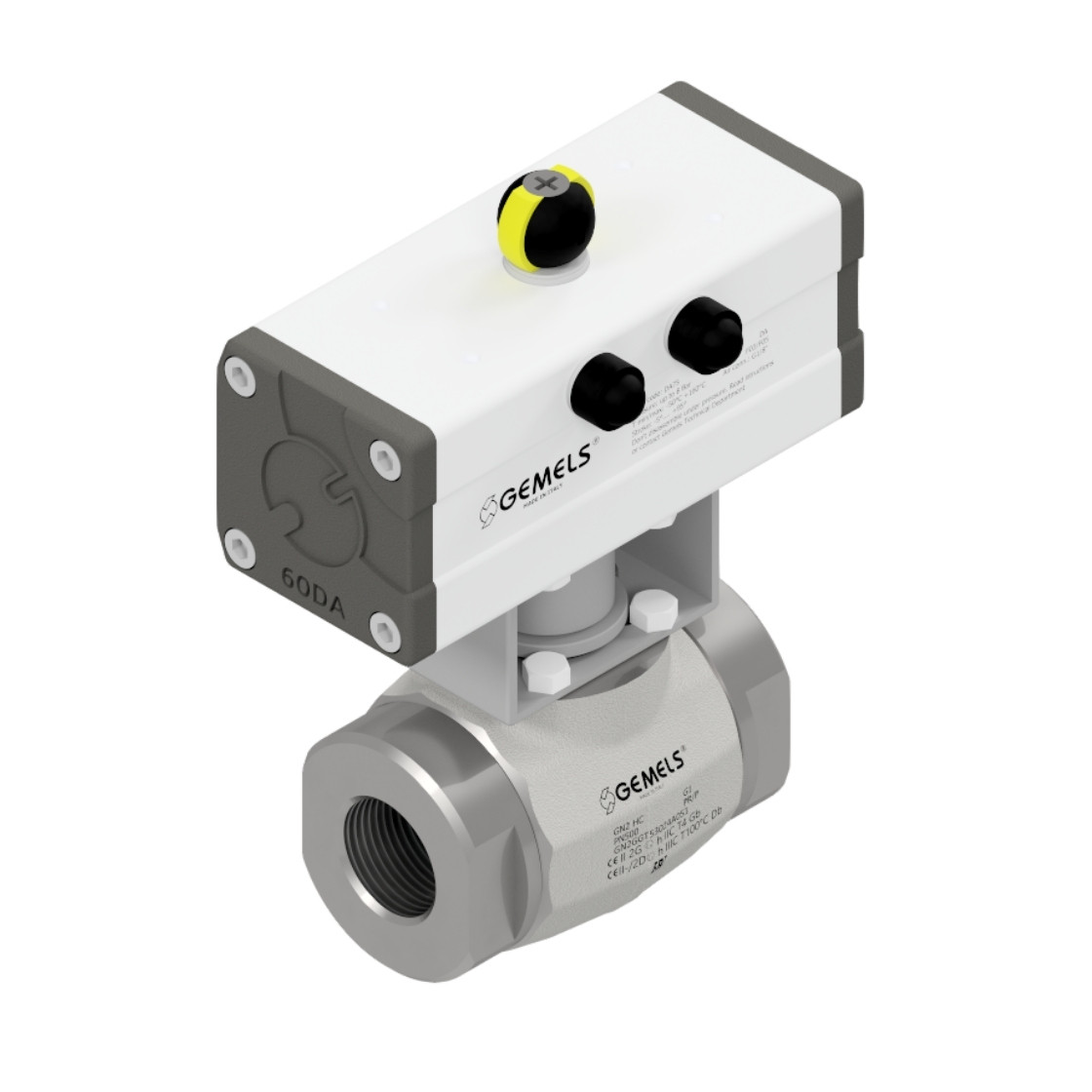

GN HC
Type2-WAY BALL VALVE
Dimensions from DN6 to DN50
Technical details BSP-NPT-SAE
Pressure up to PN410
Temperature range from -20°C to +100°C

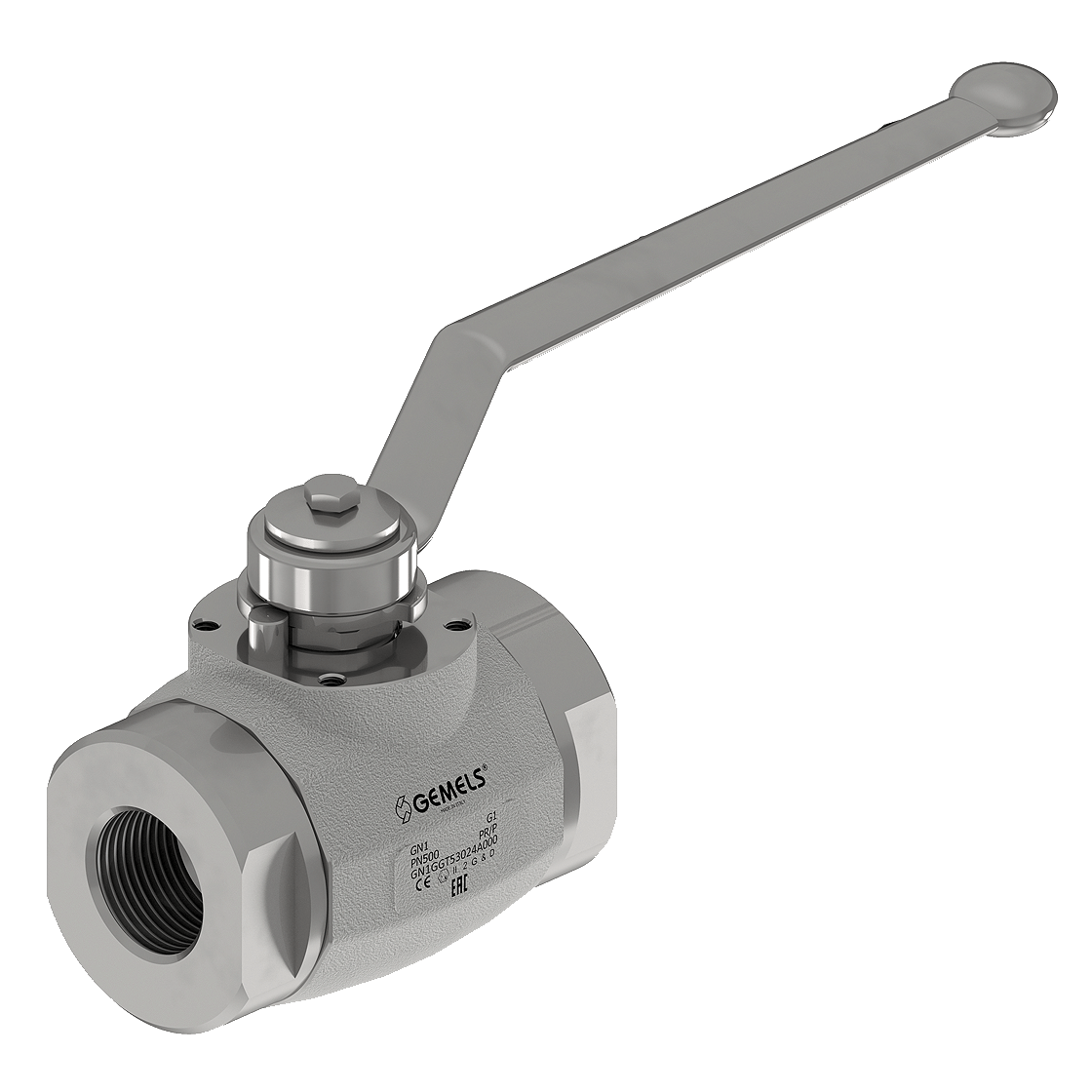

Ball valves for the Oil & Gas sector
Gemels GV2 ball valve for excavators
GN SERIE
Type2-WAY BALL VALVE
Dimensions from DN6 to DN50
Technical details BSP-NPT-SW-SWXT -PE BW
Pressure up to PN500 / S6000
Temperature rangefrom -46°C up to +250°C (based on the selected material)
BALL VALVE FOR AEROSPACE
Gemels GV2 ball valve for excavators
GM
TypeBALL VALVE 2 WAY
Dimensionsfrom DN6 to DN100
Technical details BSP-NPT-SW-SWXT -PE BW
Pressure up to PN500/S3000
Temperature rangefrom -46°C up to +250°C (based on the selected material)
BALL VALVE FOR AEROSPACE
Gemels GV2 ball valve for excavators
GM
TypeBALL VALVE 2 WAY
Dimensionsfrom DN6 to DN100
Technical details BSP-NPT-SW-SWXT -PE BW
Pressure up to PN500/S3000
Temperature rangefrom -46°C up to +250°C (based on the selected material)
BALL VALVES FOR LNG
Gemels GV2 ball valve for excavators

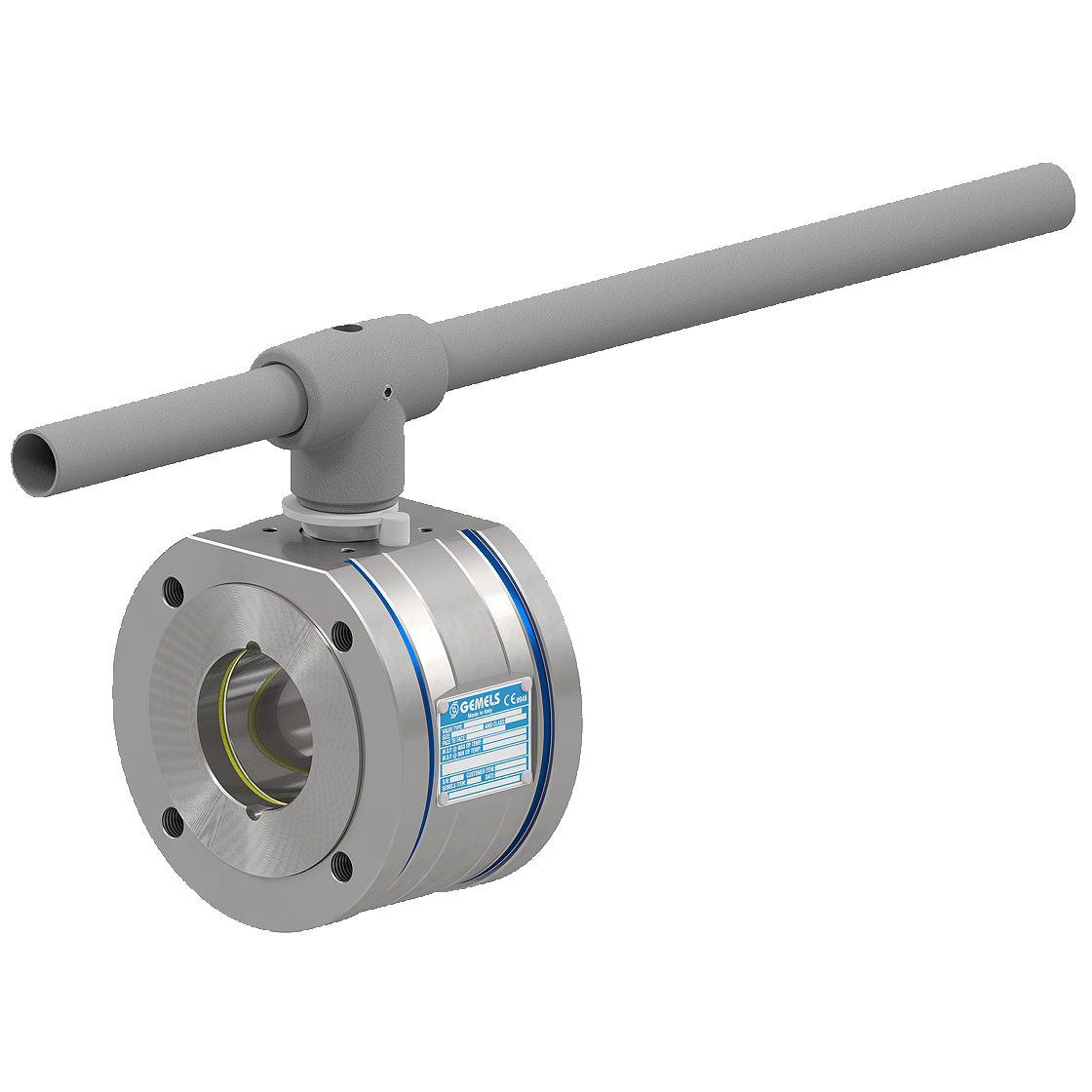

SBF - WAFER
TypeBALL VALVE SPLIT BODY FLOATING WAFER TYPE
Dimensionsfrom DN13 to DN150
Pressure ANSI 150-600
Temperature range from -50°C up to +200°C (depending on selected materials)
Hydraulic Solutions

Need The Right Gemels Ball Valve, Fast?

Talk to our engineers for cross-referencing, sizing, and same-day quotes.

Send An Enquiry
